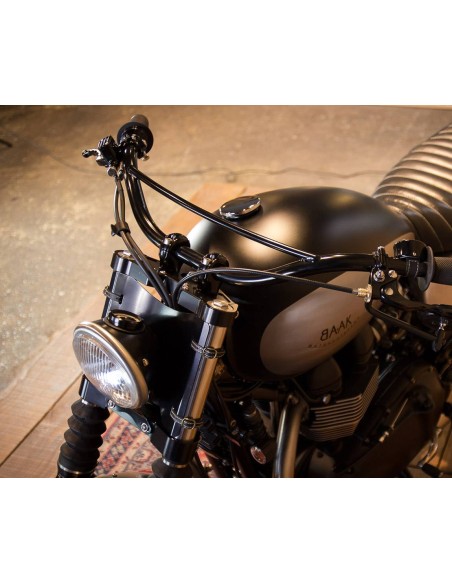

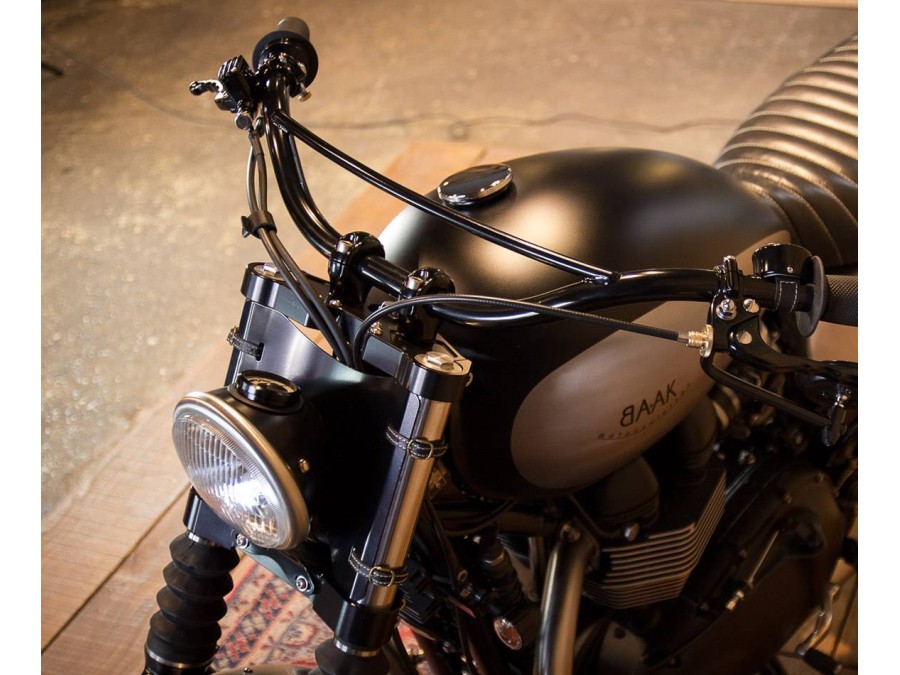

Bates headlight with integrated motogadget Tiny speedo for Triumph
(pre-2016 - air-cooled)

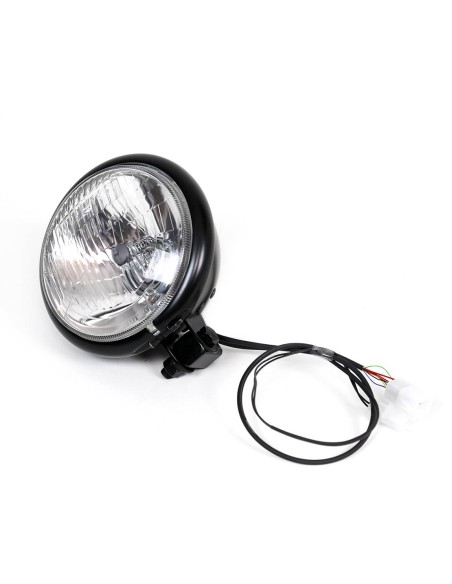

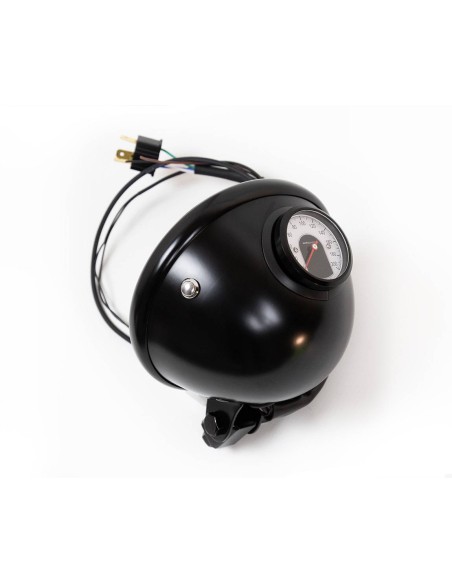

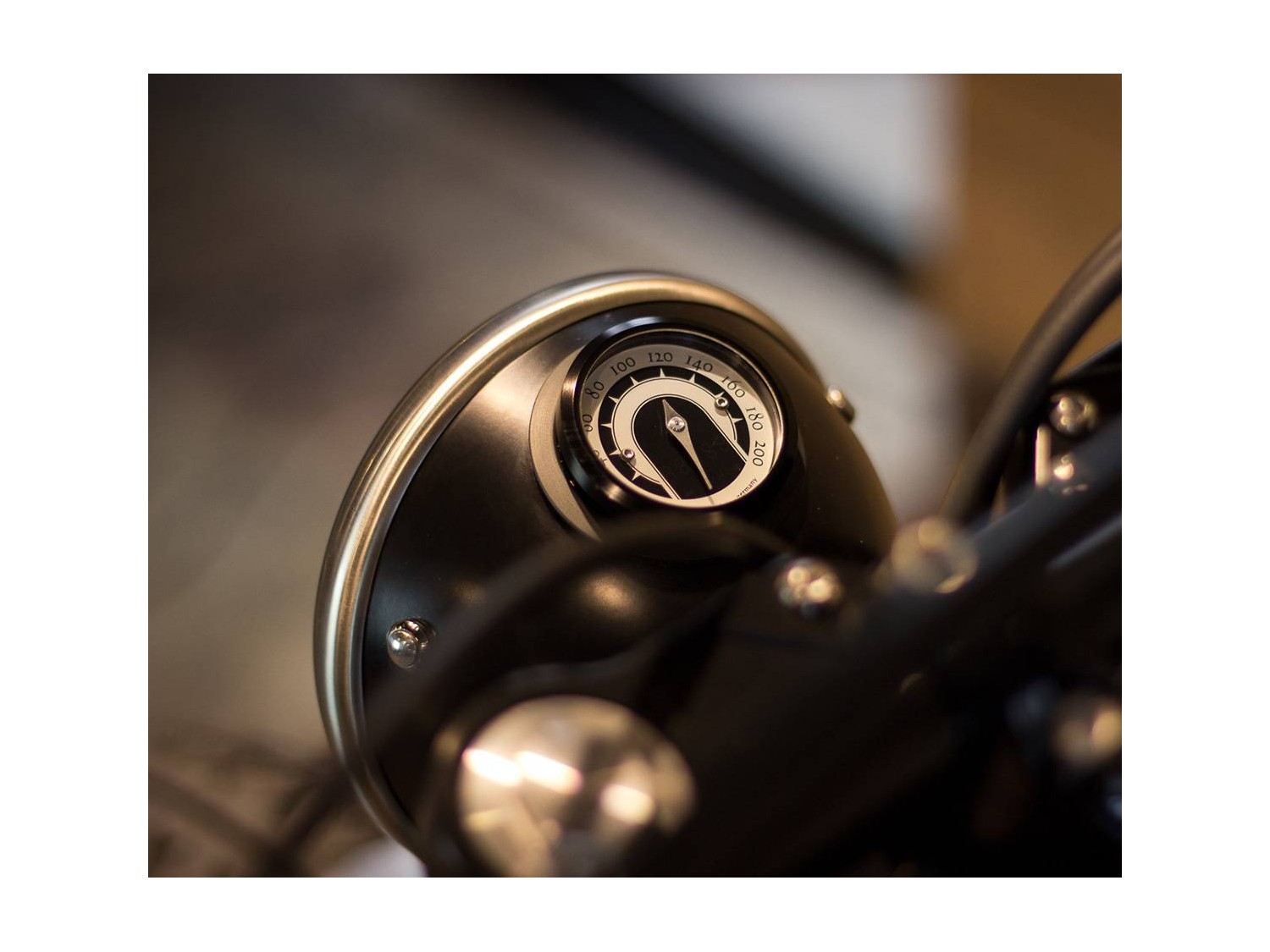

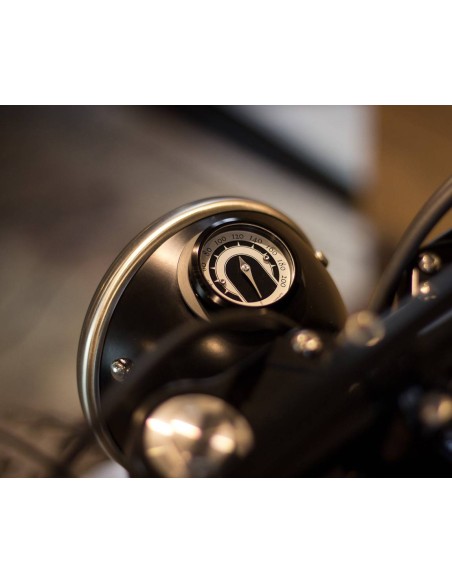

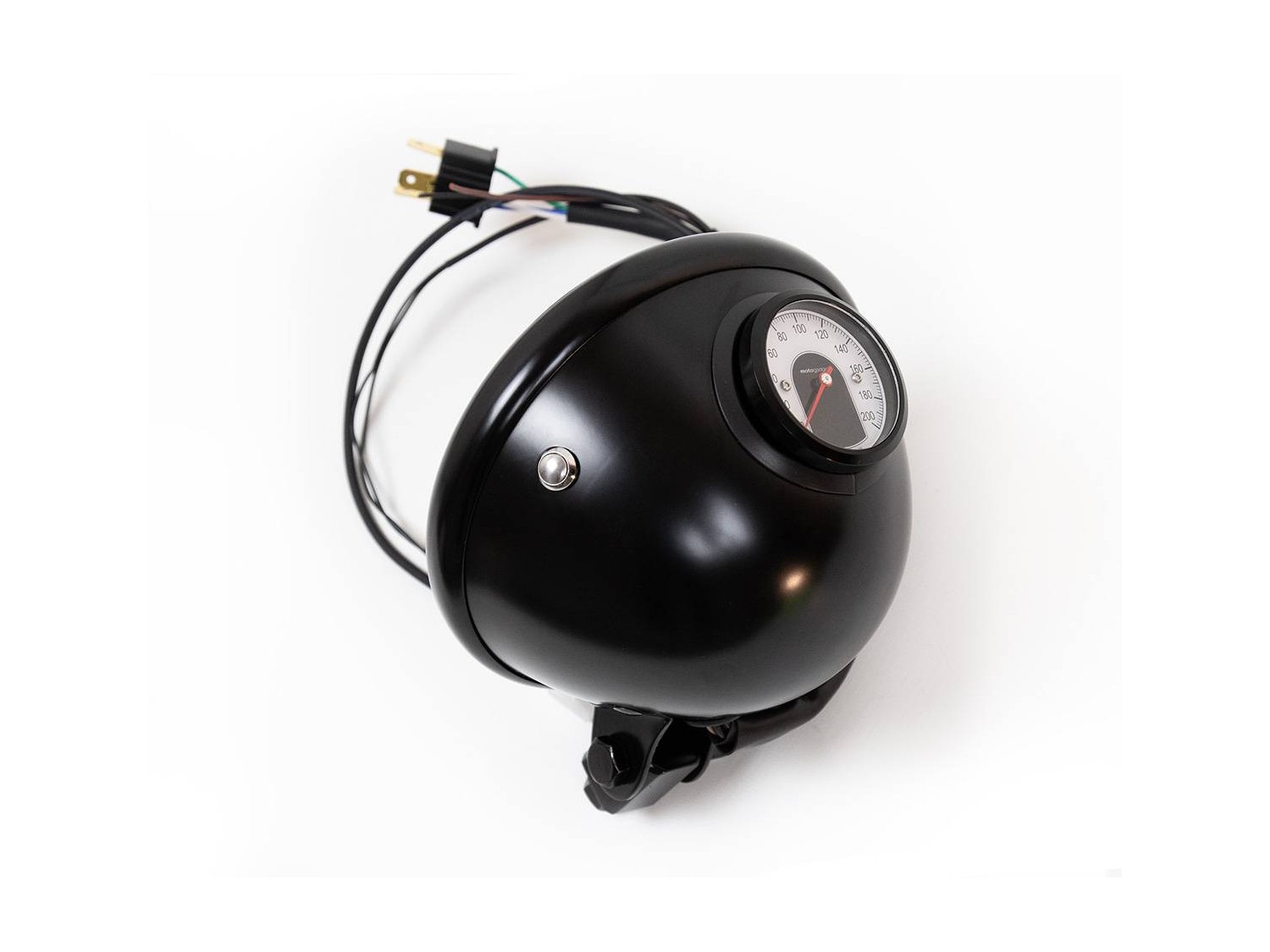

Integrated into a Bates ø150mm headlight housing, this headlight with integrated speedo is a Plug & Play solution to tidy the cockpit while retaining the functions of your original instrument.

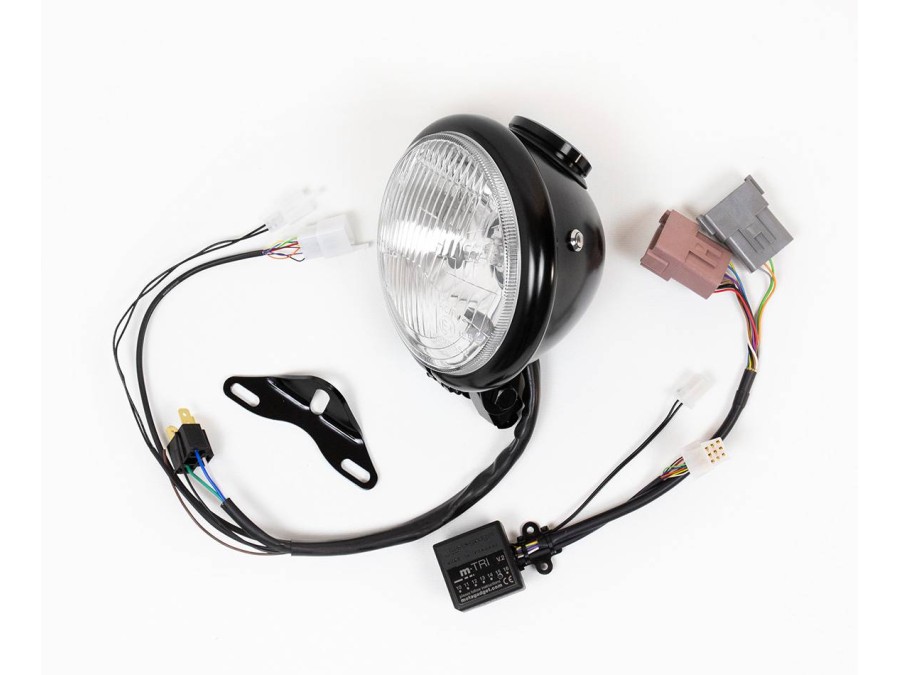

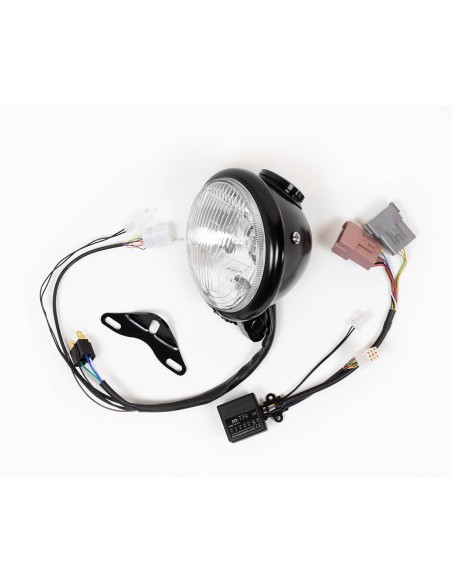

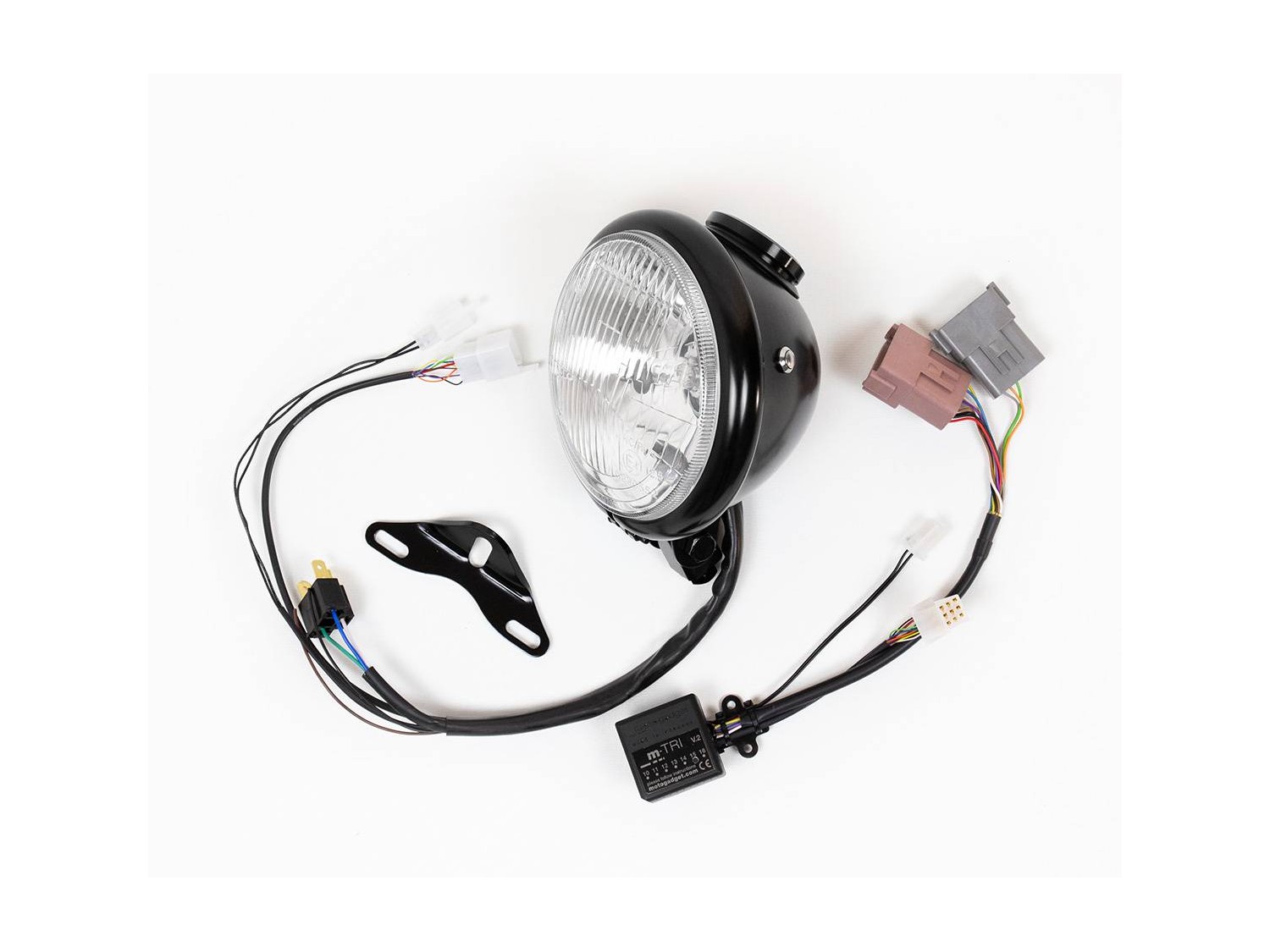

This speedo is offered in a plug & play version and is supplied with everything needed according to the motorcycle model you select (mounting bracket, M-Tri multiplexing box, speed sensor, compatible wiring harness...).

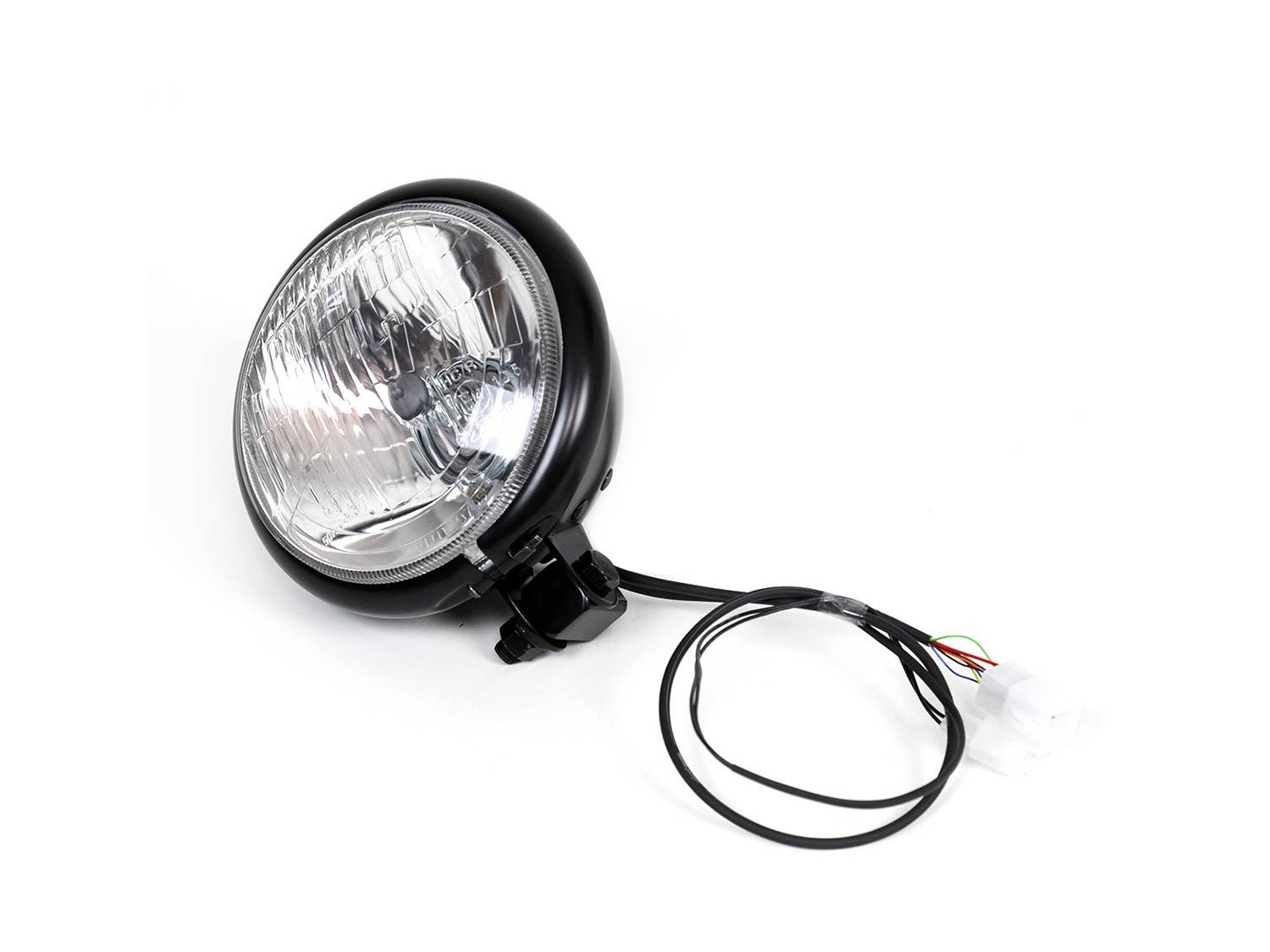

Headlight with satin black housing and a Chromed, Brushed or Satin black bezel. A fully Brushed or Chromed finish is also possible.

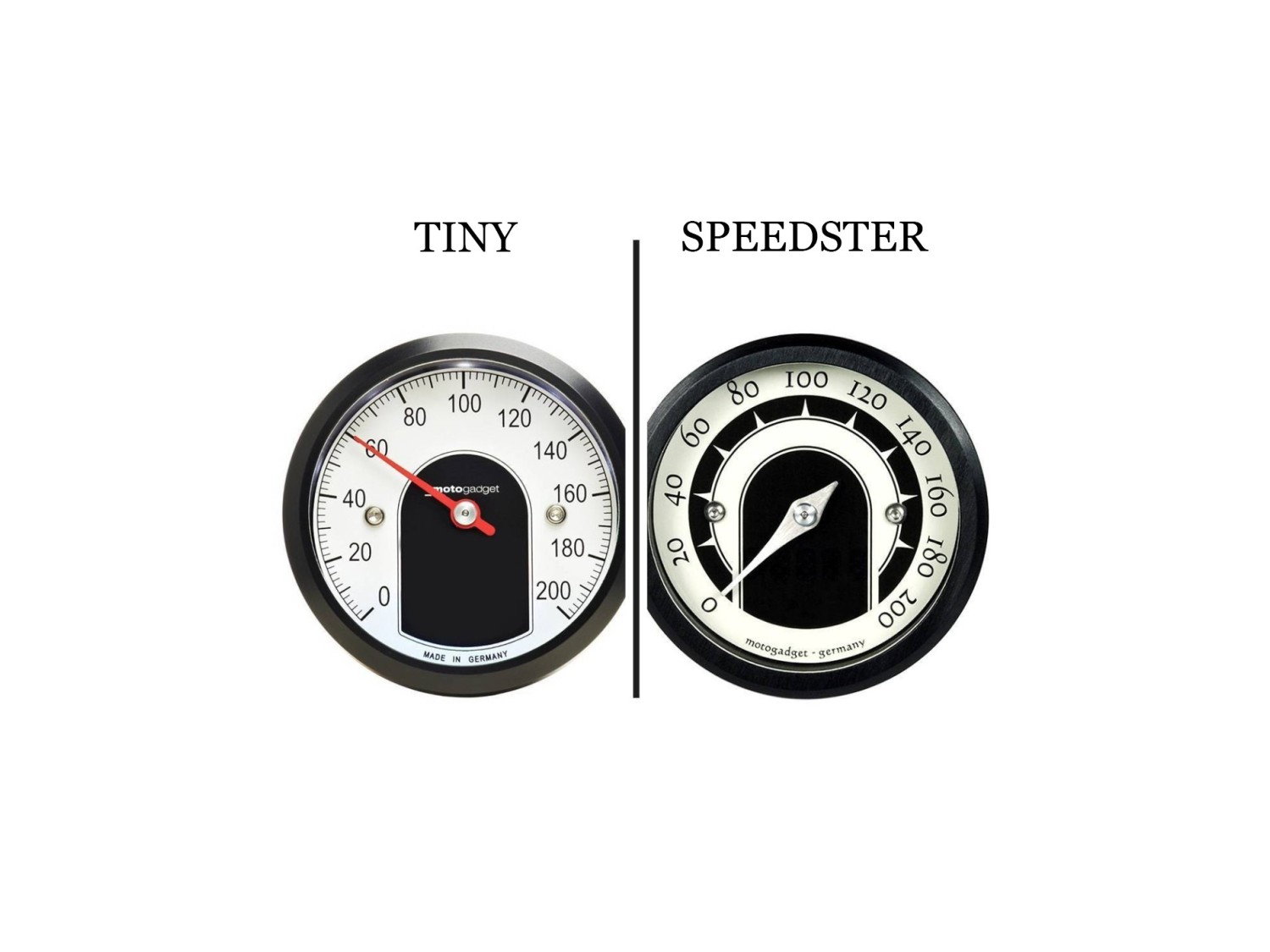

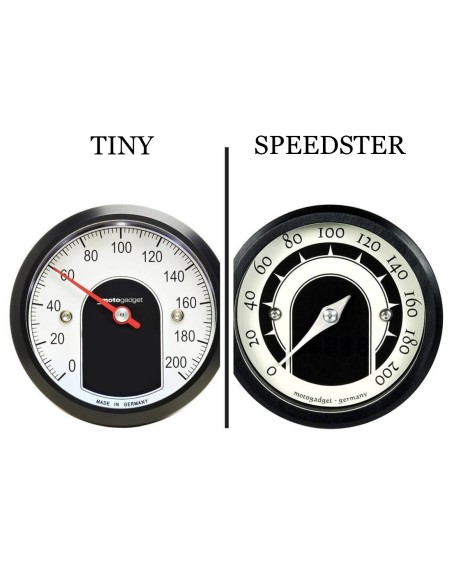

Speedo face available in Tiny or Speedster finish.
The headlight is CE approved and the speedo is CE and TÜV approved.
The user manual is available below.
Find our guide below to choose the correct motorcycle model.
BAAK EXCLUSIVE
CE-approved headlight and Motogadget Tiny speedometer approved CE and TUV with ABE certificate.

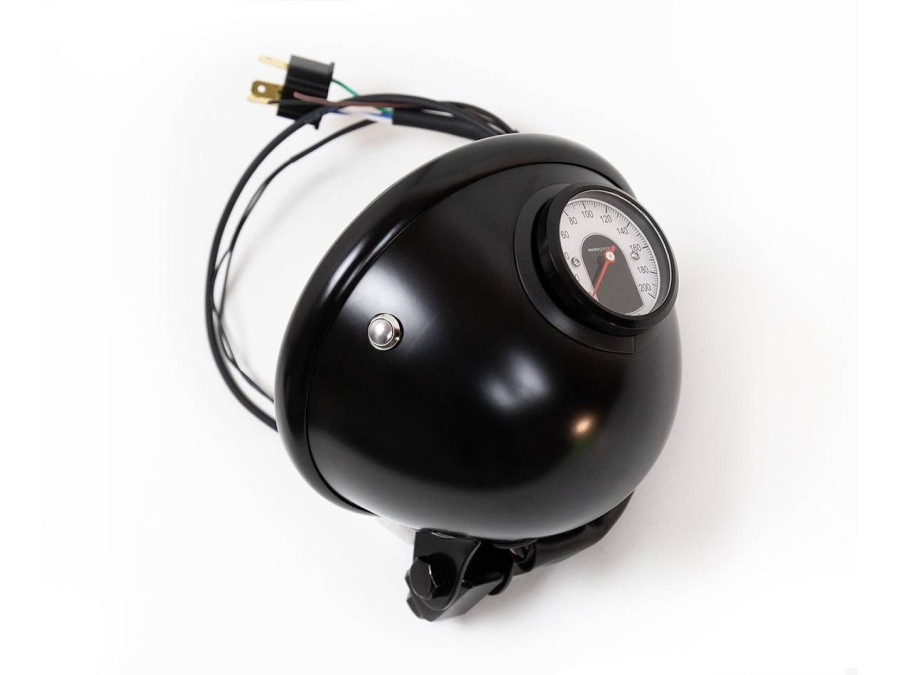

The ø49mm diameter, 24mm high speedometer is made in Germany by Motogadget. It is supplied with a button allowing navigation through the speedometer menus via the central LCD, set your actual mileage, view your top speed achieved...
You will find the following information:
Fuel reserve
We configure the speedometer to add the "fuel reserve" functionality. The speedometer does not have a dedicated indicator but we transfer the information to the turn signal indicator. When you reach the fuel reserve, the indicator of both turn signals (left and right) remains fully lit with increasing intensity as the tank approaches empty.

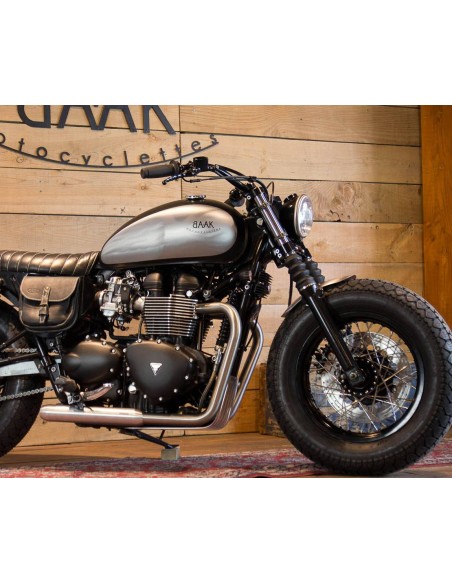

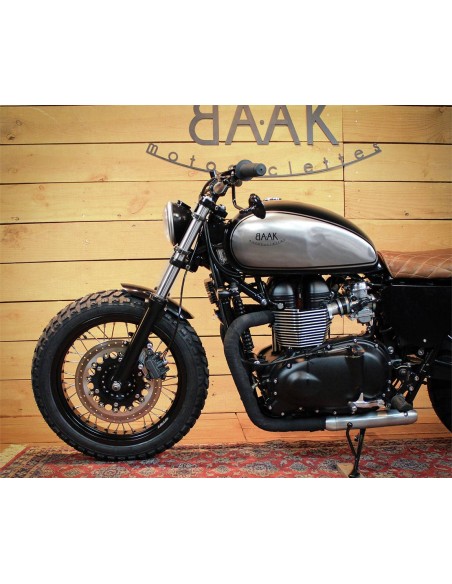

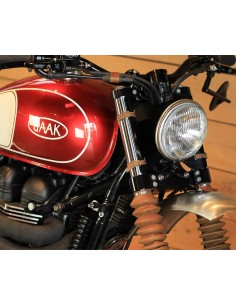

Supplied with its precabled M-TRI multiplexing unit for injection models. This headlight mounts at the location of your Triumph's voltage regulator. It is therefore necessary to relocate your regulator using our Regulator bracket for Triumph (pre-2016).
WARNING, this speedometer is not compatible with Triumph Scrambler EFI models with a mechanical speedometer.
