motogadget Tiny speedometer for Triumph Bonneville, Scrambler or Thruxton

(before 2016 - air cooled)

This speedometer is a Plug & Play solution to clean up the cockpit while keeping the functions of your original instrument cluster.

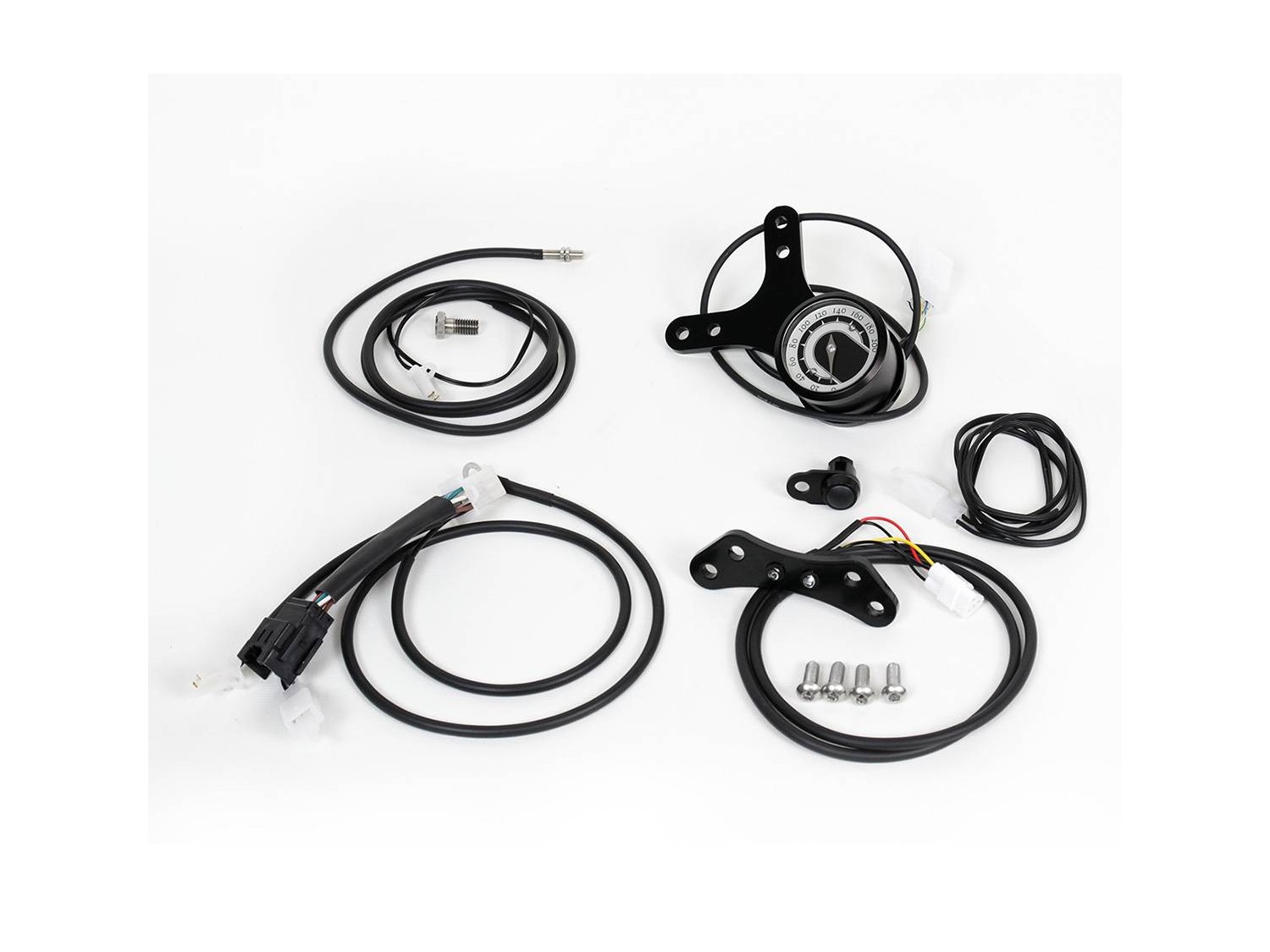

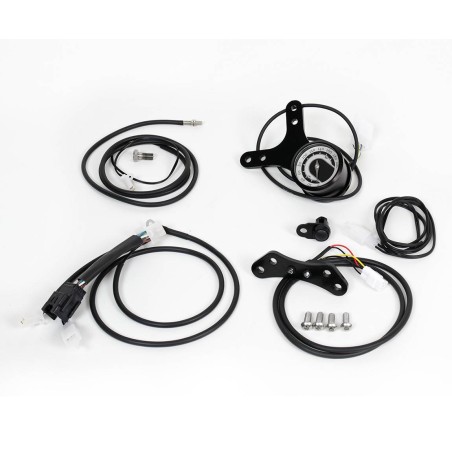

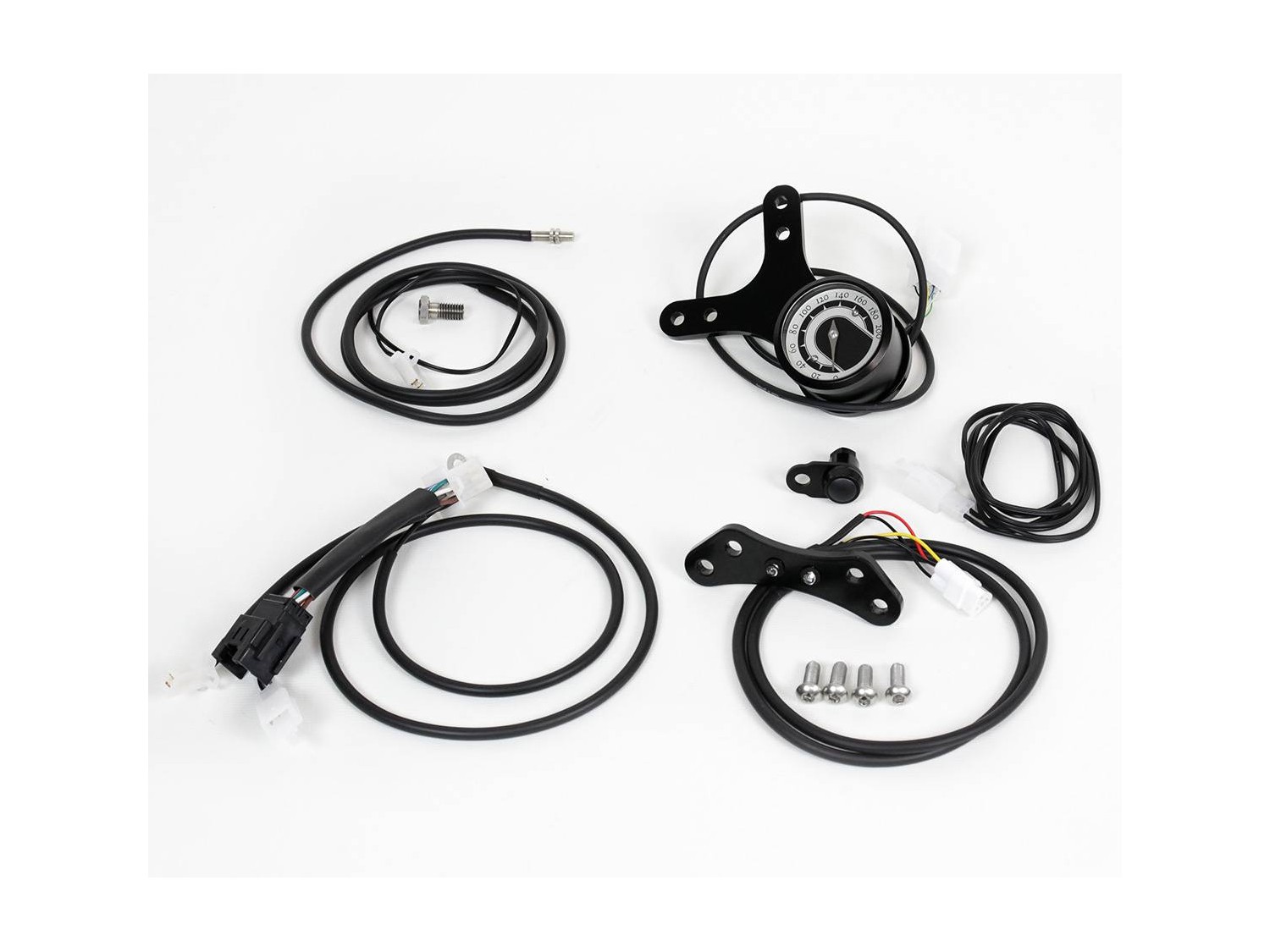

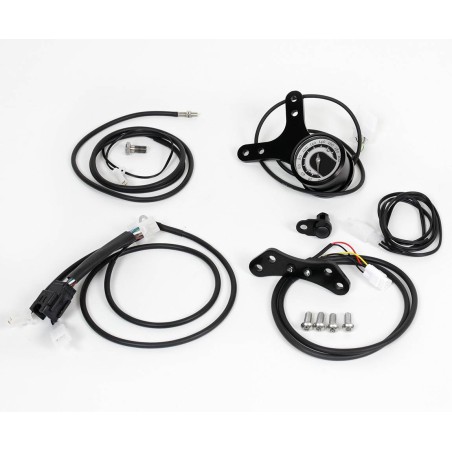

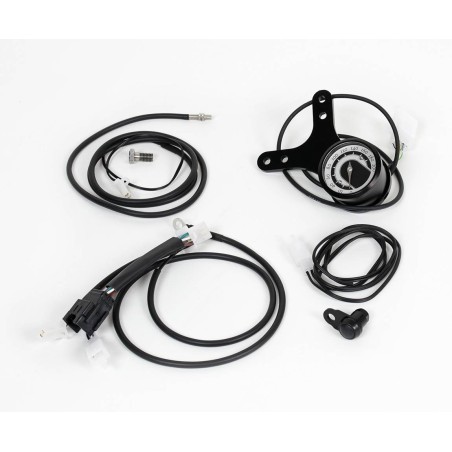

It is supplied with everything required according to the motorcycle model you select (mounting bracket, M-Tri multiplexing box, speed sensor, compatible wiring harness...).

Headlight with satin black bowl and a Chrome, Brushed or Satin Black trim ring. A fully Brushed or Chrome finish is also possible.

The speedometer can be displayed in KM/H or MHP.

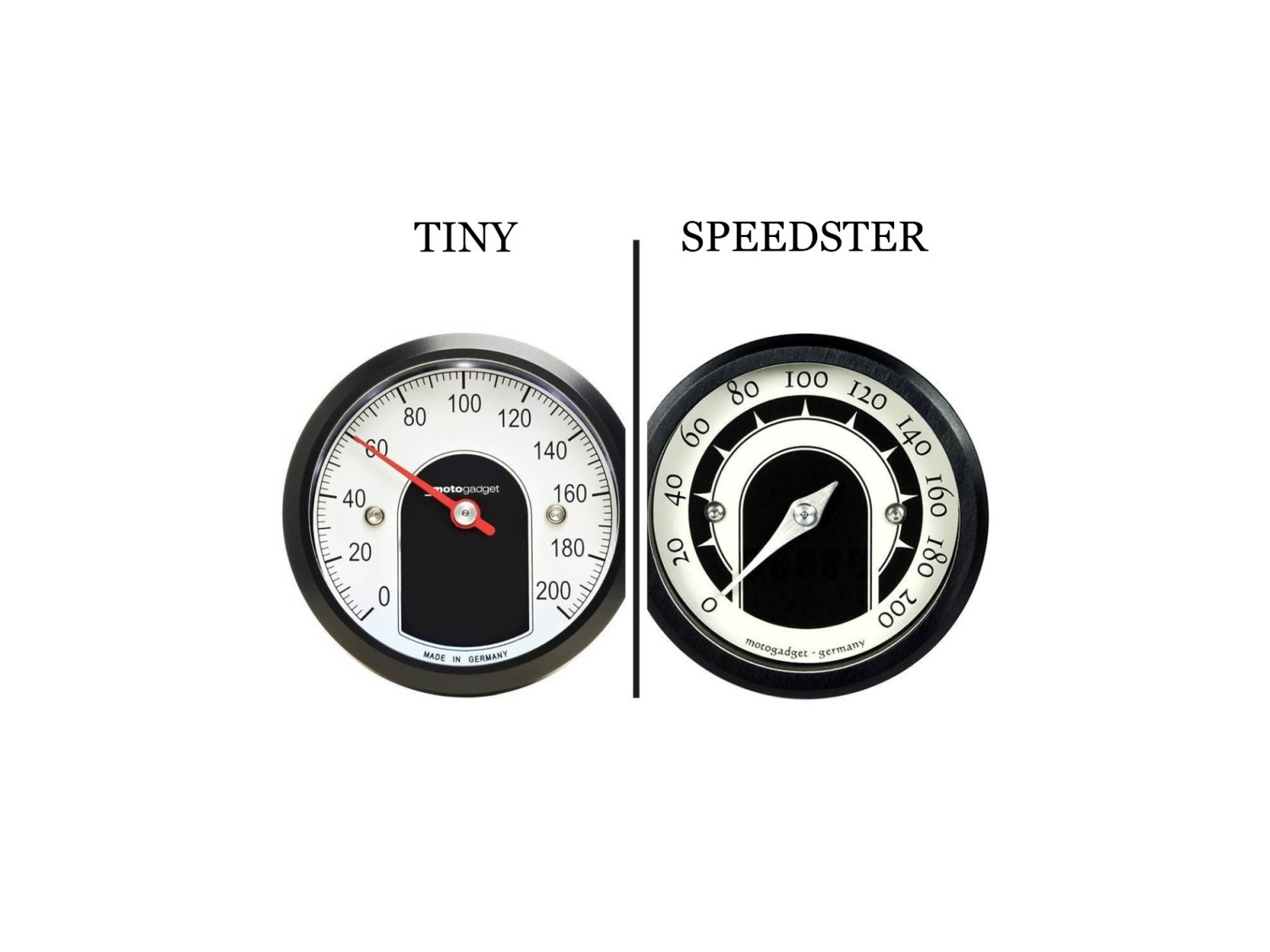

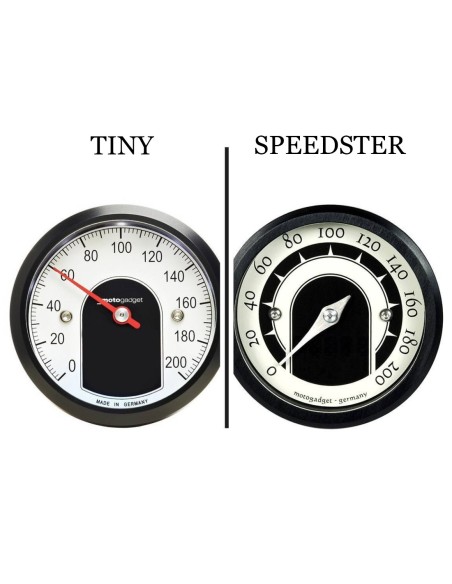

Dial available in Tiny or Speedster finish.

Two mounting plates available to choose from :

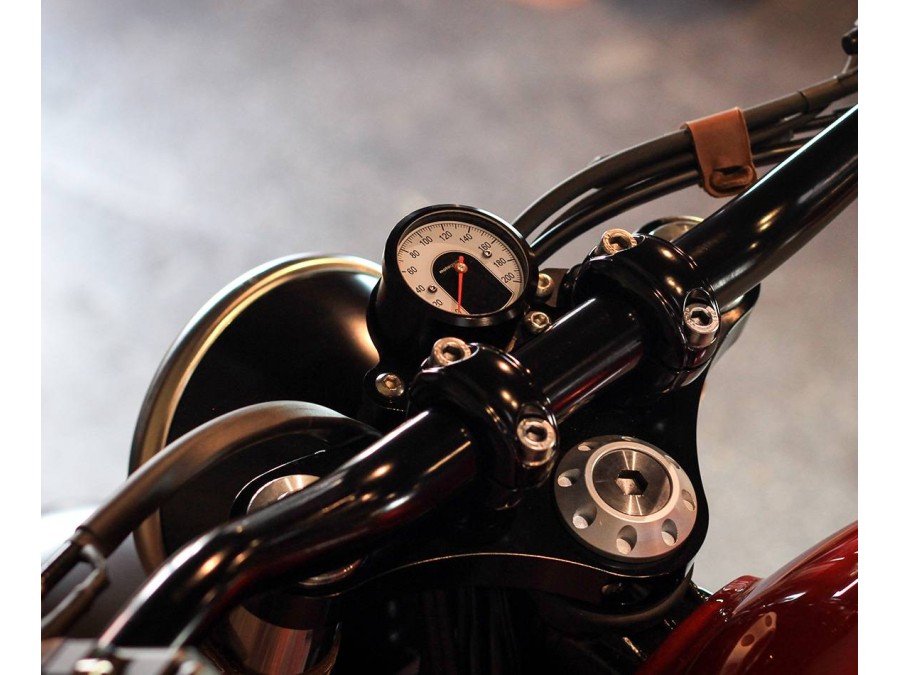

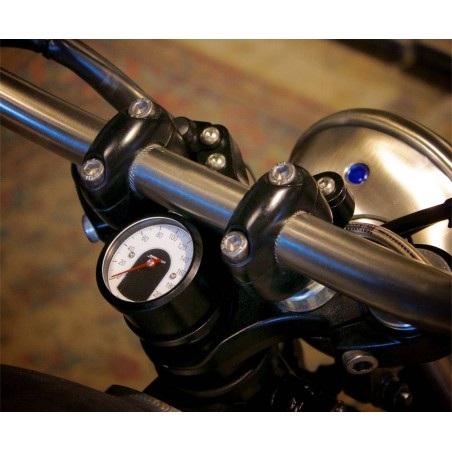

In the classic position in front of the handlebars

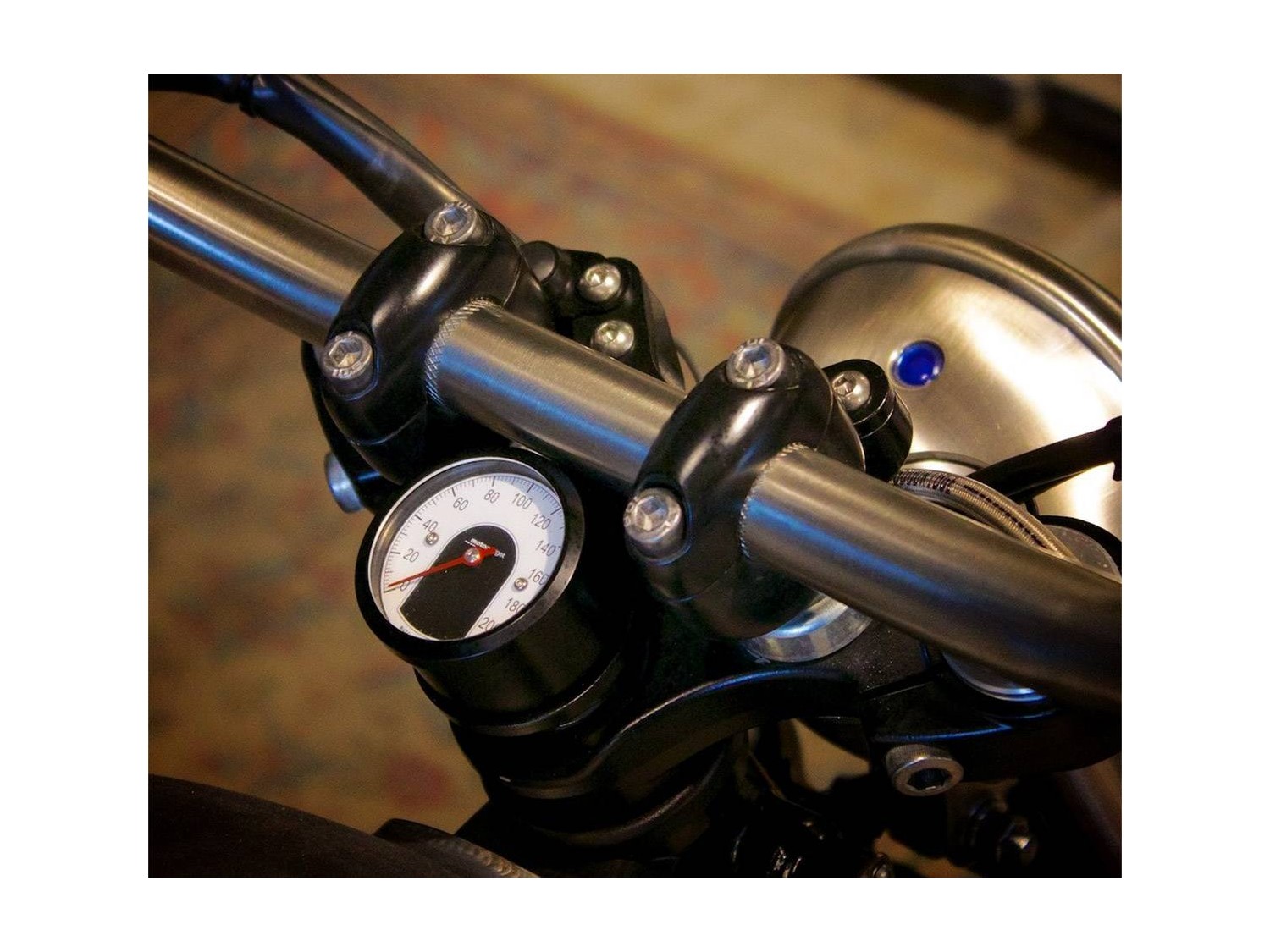

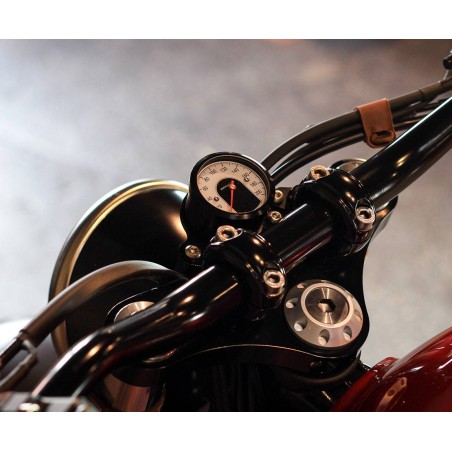

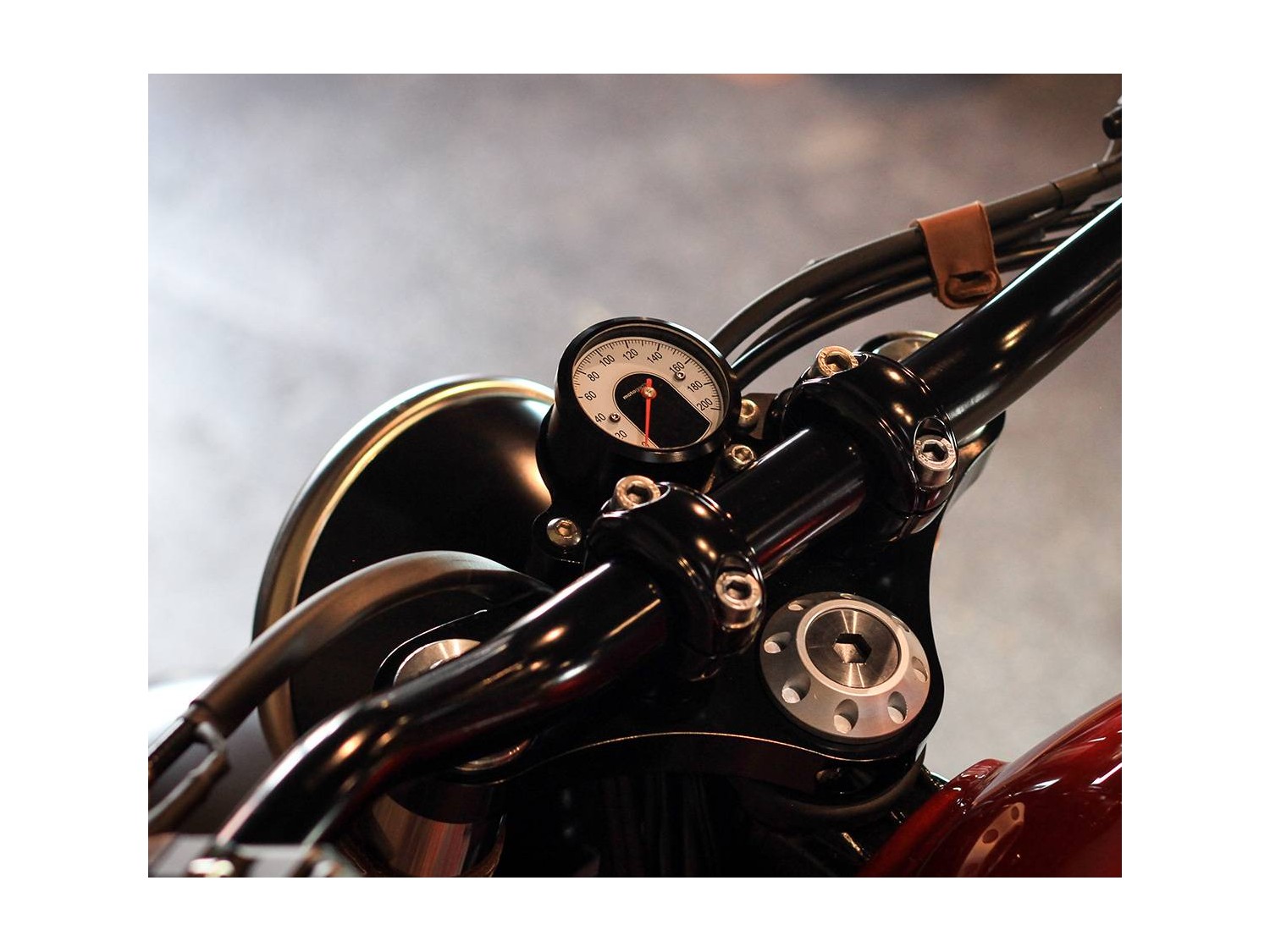

Above the steering stem

The headlight is CE approved and the speedometer is CE and TÜV approved.

The user manual is available below.

Find our guide below to choose the correct motorcycle model.

BAAK EXCLUSIVE

Availability : 10 to 15 days

KMH / MPH ^*

€0.00

Tiny / Speedster ^*

€0.00

Motorcycle model ^*

€0.00

Speedometer position ^*

€0.00

Your configuration:

Final price (tax incl.): €689.00

2-year warranty

Secure payment. Enjoy 4x without fees

French craftsmanship

Customer service at your disposal

International delivery

CE-approved headlight and Motogadget Tiny speedometer approved CE and TUV with ABE certificate.

This mini speedometer is available for:

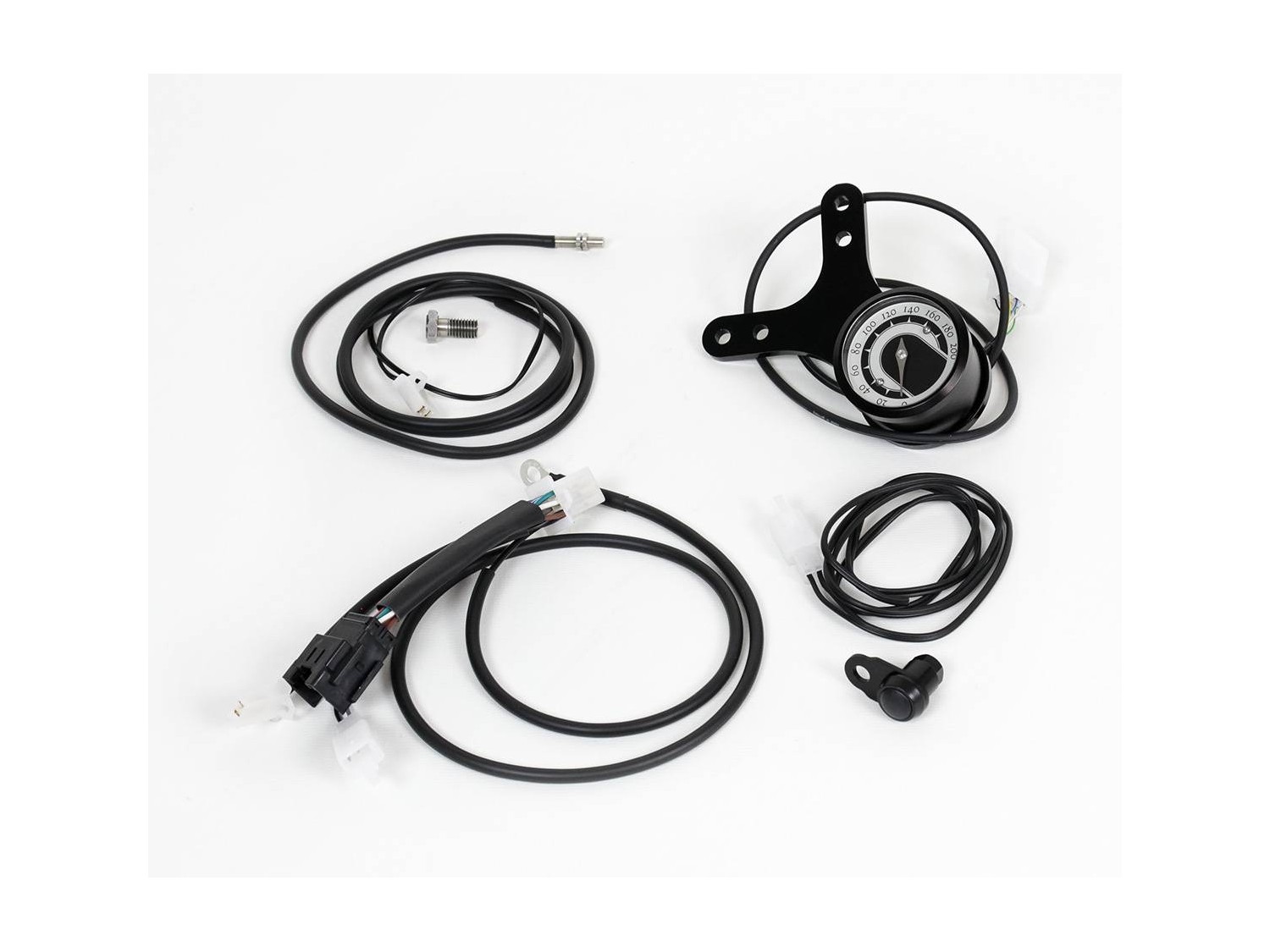

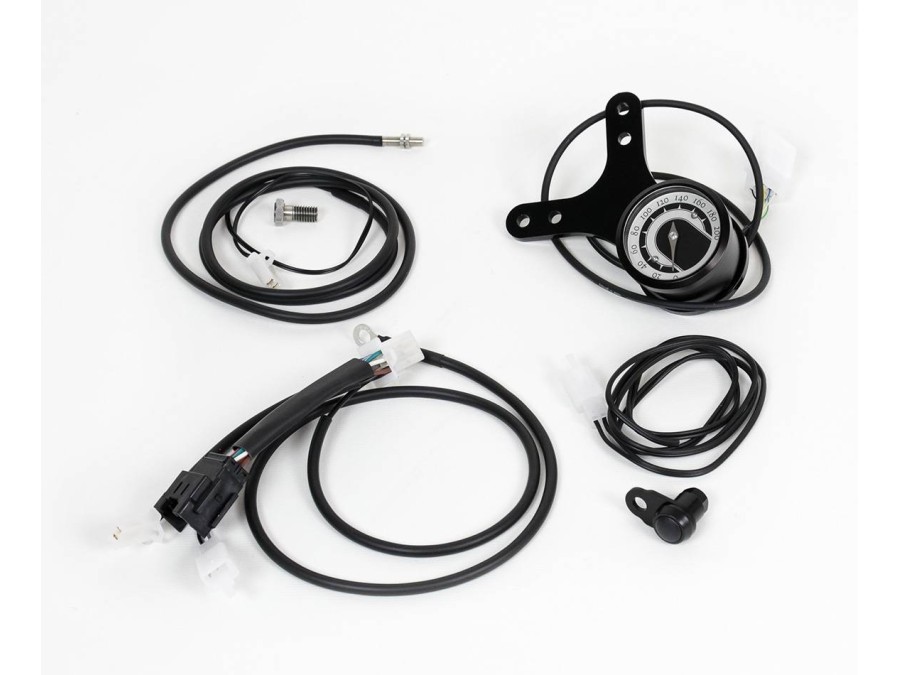

Carburetor models, delivered with connection wiring harness and speed sensor.

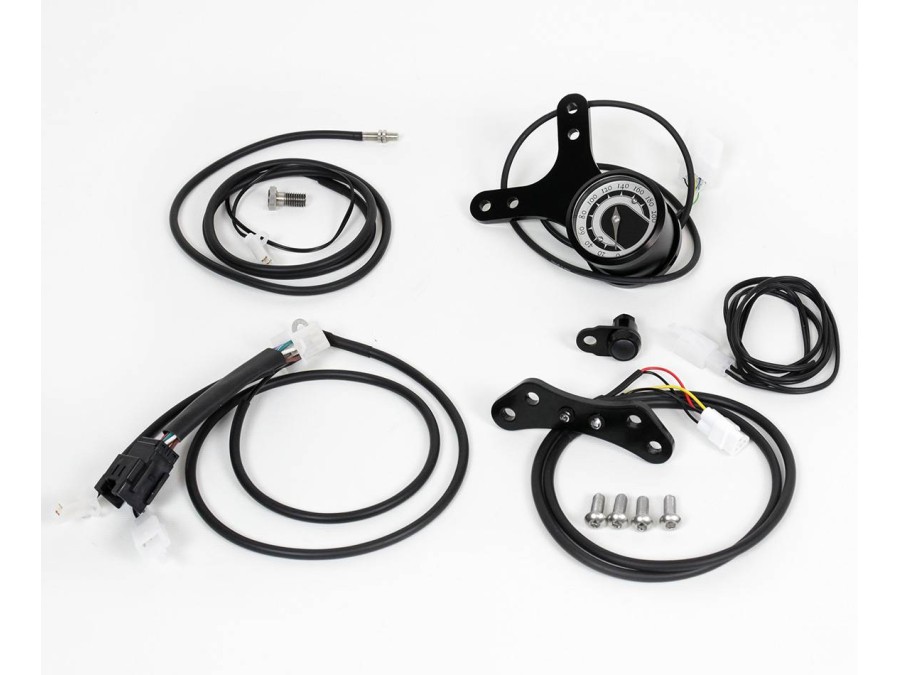

EFI model with mechanical speedometer with indicator mounting plate for Engine Fault / Low Fuel (Do not choose the CLASSIC POSITION option for Triumph in order to place this plate in front of the handlebars)

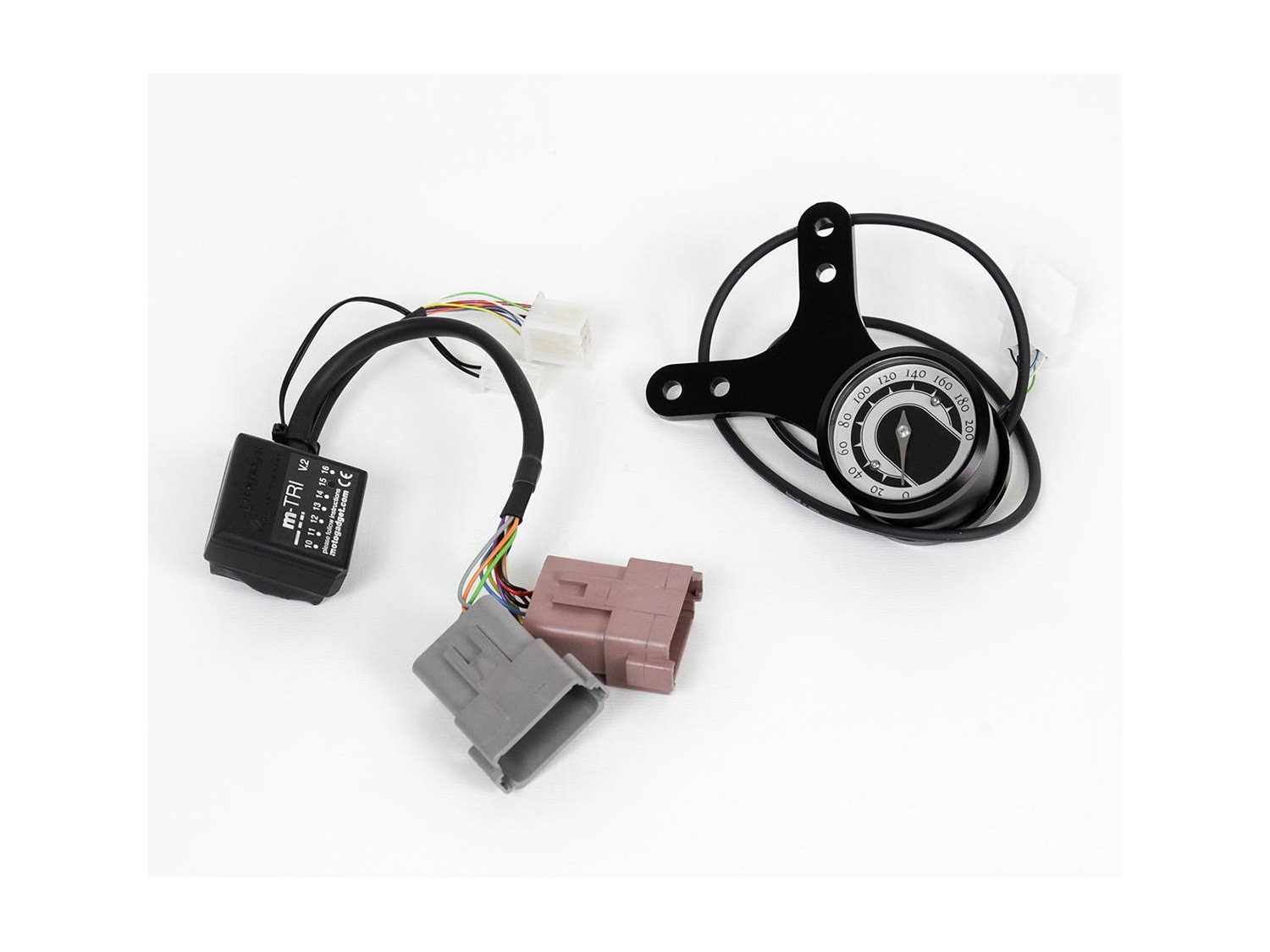

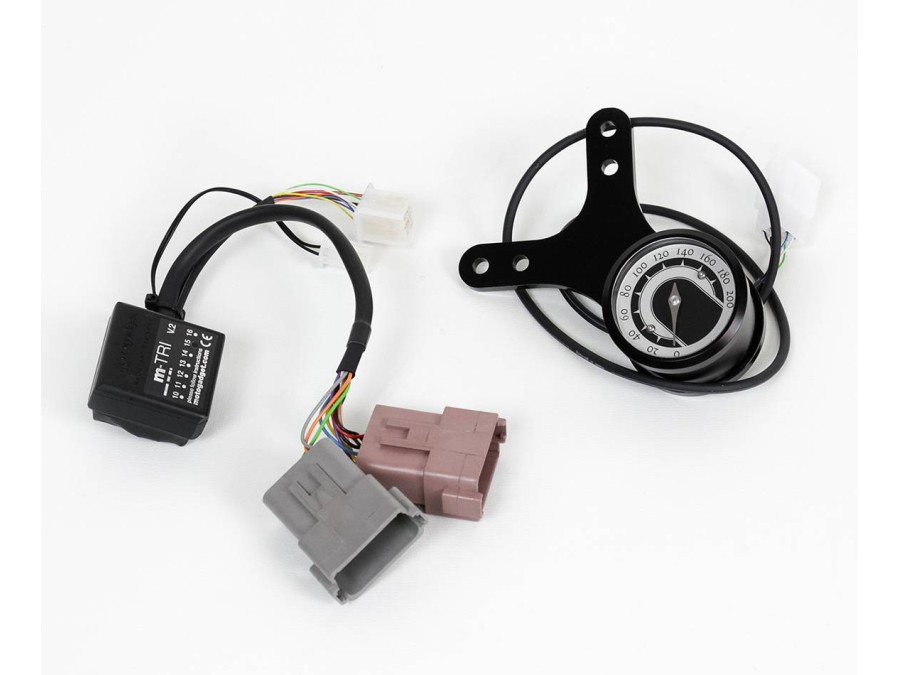

EFI models with electronic speedometer with wiring harness and pre-wired M-Tri multiplexing unit.

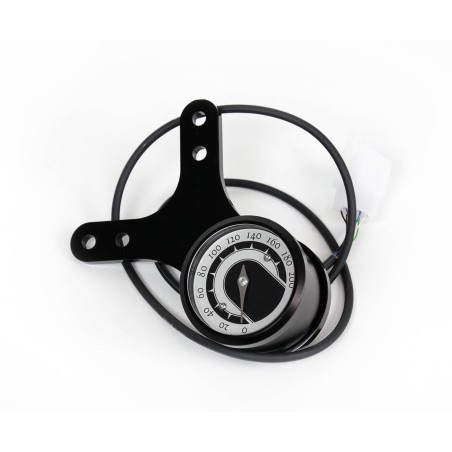

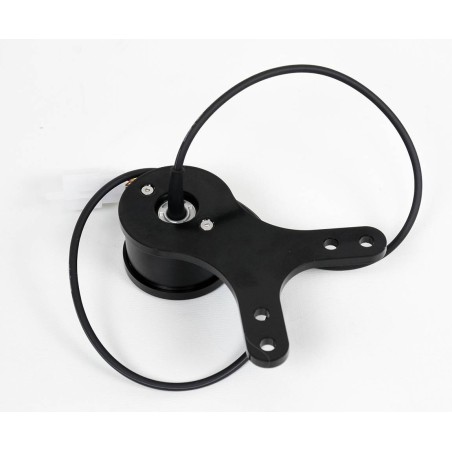

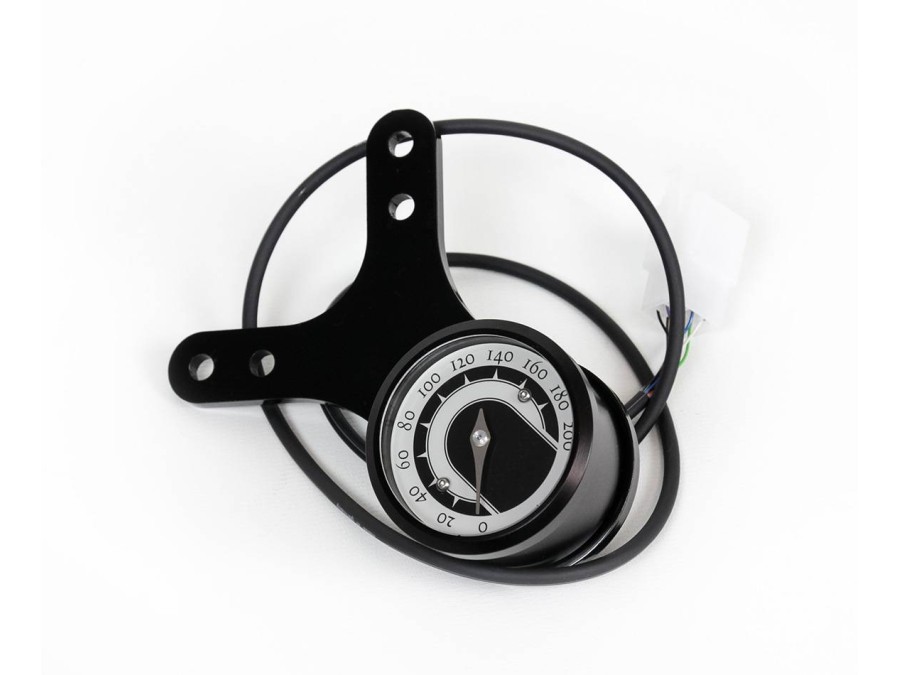

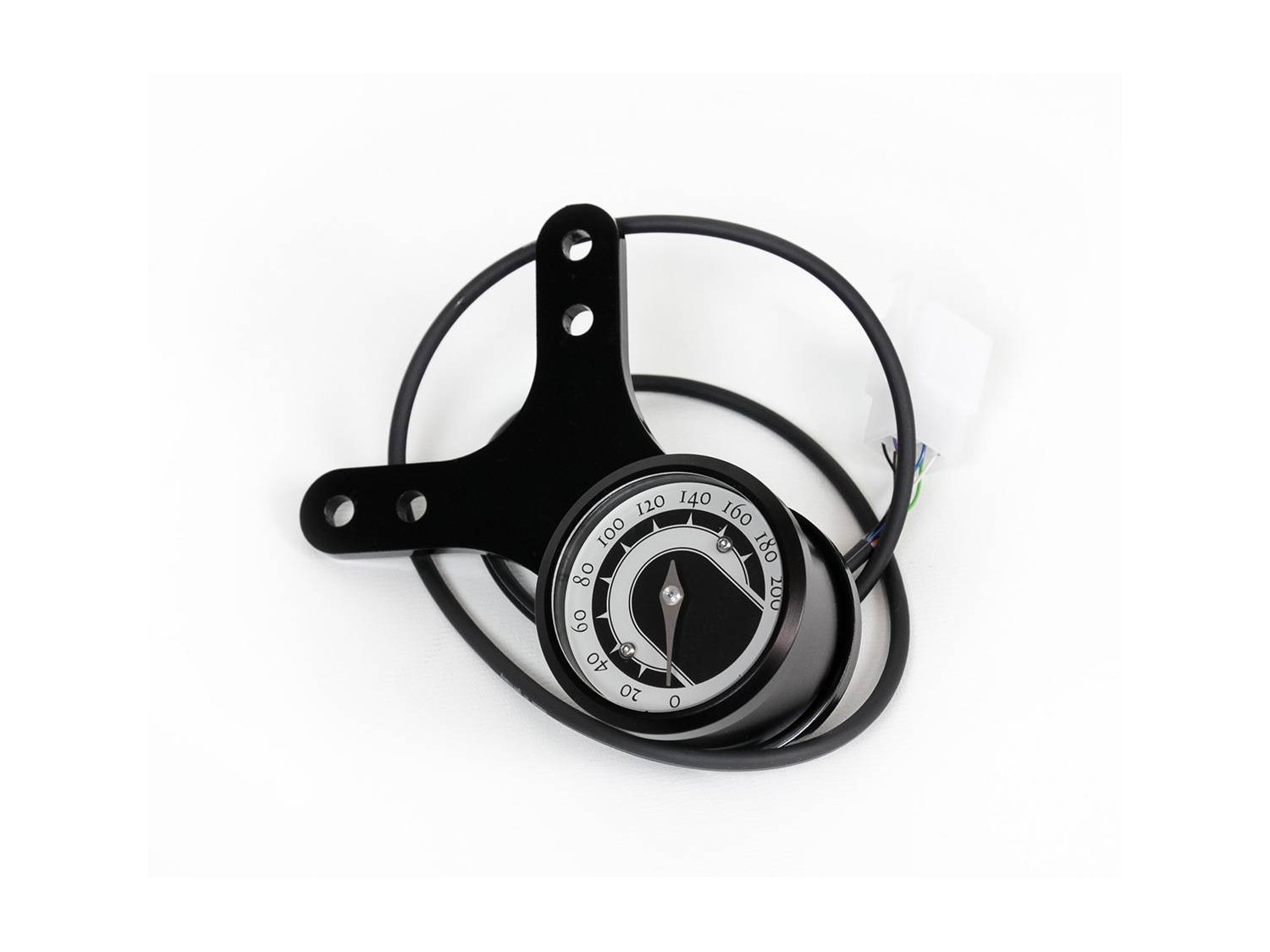

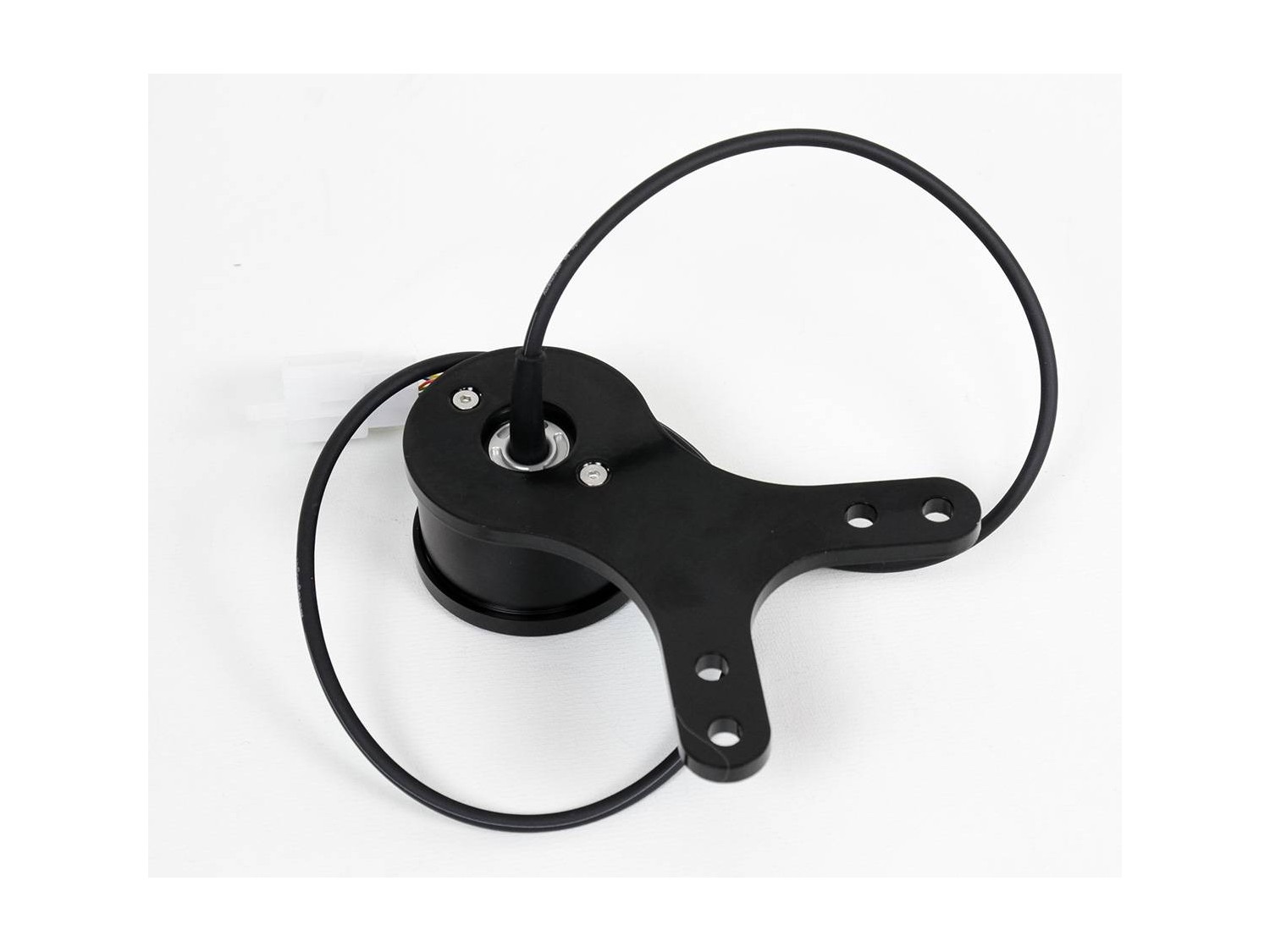

This speedometer bolts to the upper triple clamp in place of the original speedometer thanks to an aluminium mounting plate painted satin black epoxy.

WARNING, this speedometer is not compatible with Triumph Scrambler EFI with mechanical speedometer. For Triumph Scramblers with carburetors, it can only be mounted in the CLASSIC POSITION IN FRONT OF THE HANDLEBARS.

The ø49mm diameter, 24mm height speedometer is manufactured in Germany by Motogadget. It is supplied with a button allowing navigation of the instrument menus via the central LCD screen, setting your real mileage, viewing your top speed reached...

You will find the following information:

Turn signals
Neutral
Oil pressure
High beam
Total mileage
Trip mileage
Time
Maximum speed reached

Low fuel

We configure the speedometer to add the "low fuel" function. The speedometer does not have a dedicated lamp, so we transfer the information to the turn signal indicator. When you reach low fuel, the indicator for both turn signals (left and right) stays fully lit with increasing intensity as the tank approaches empty.

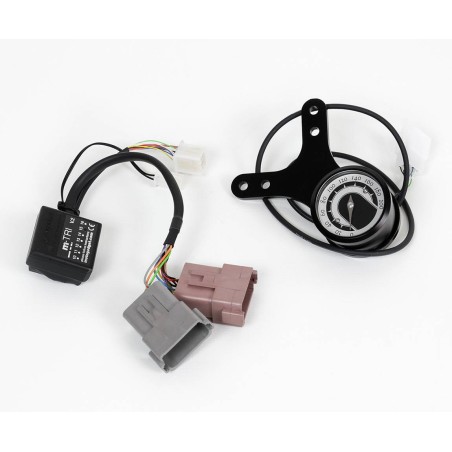

Supplied with its pre-wired M-TRI multiplexing unit for injection models. This headlight mounts in the location of your Triumph's voltage regulator. It is therefore necessary to relocate your regulator using our Support for Triumph regulator (pre-2016).

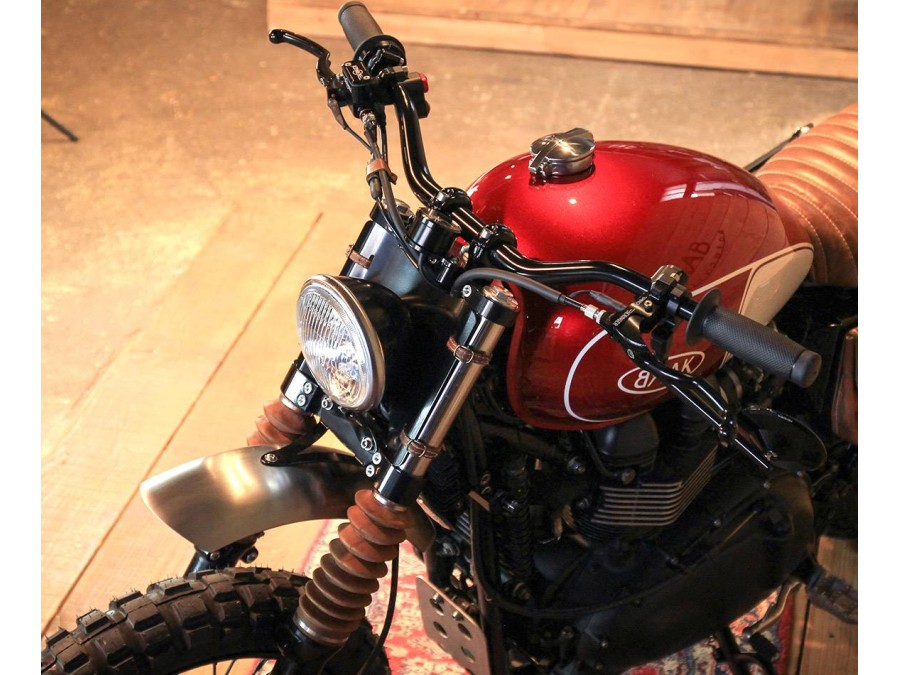

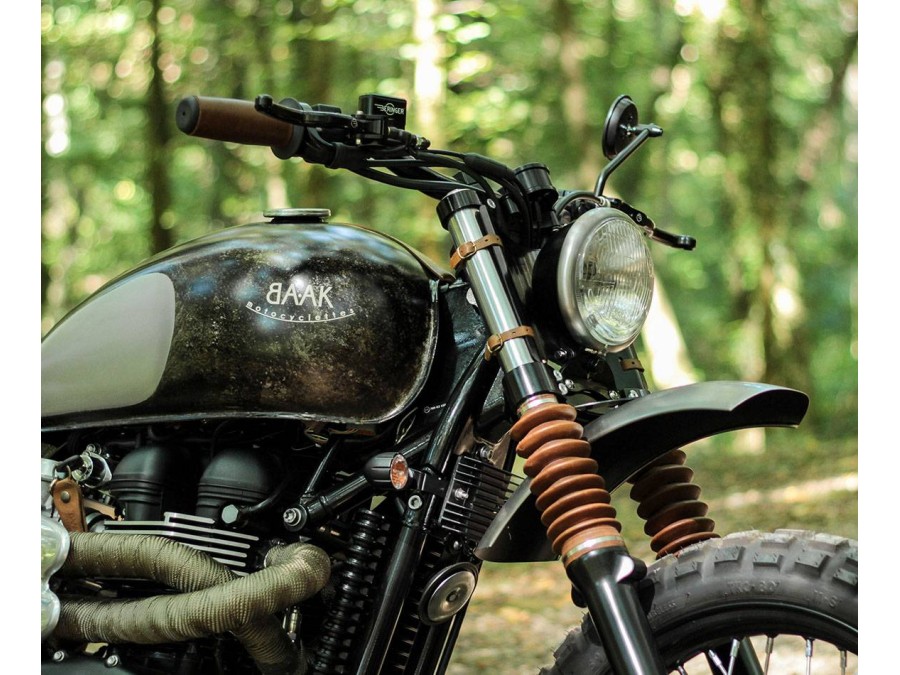

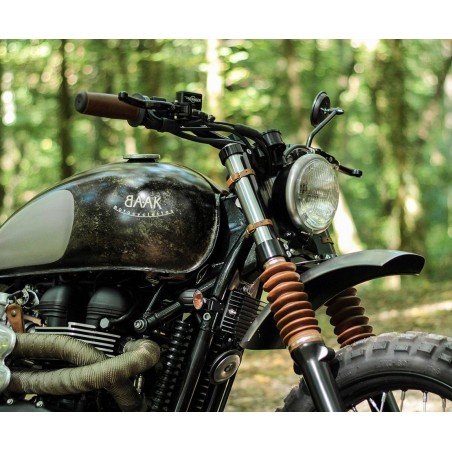

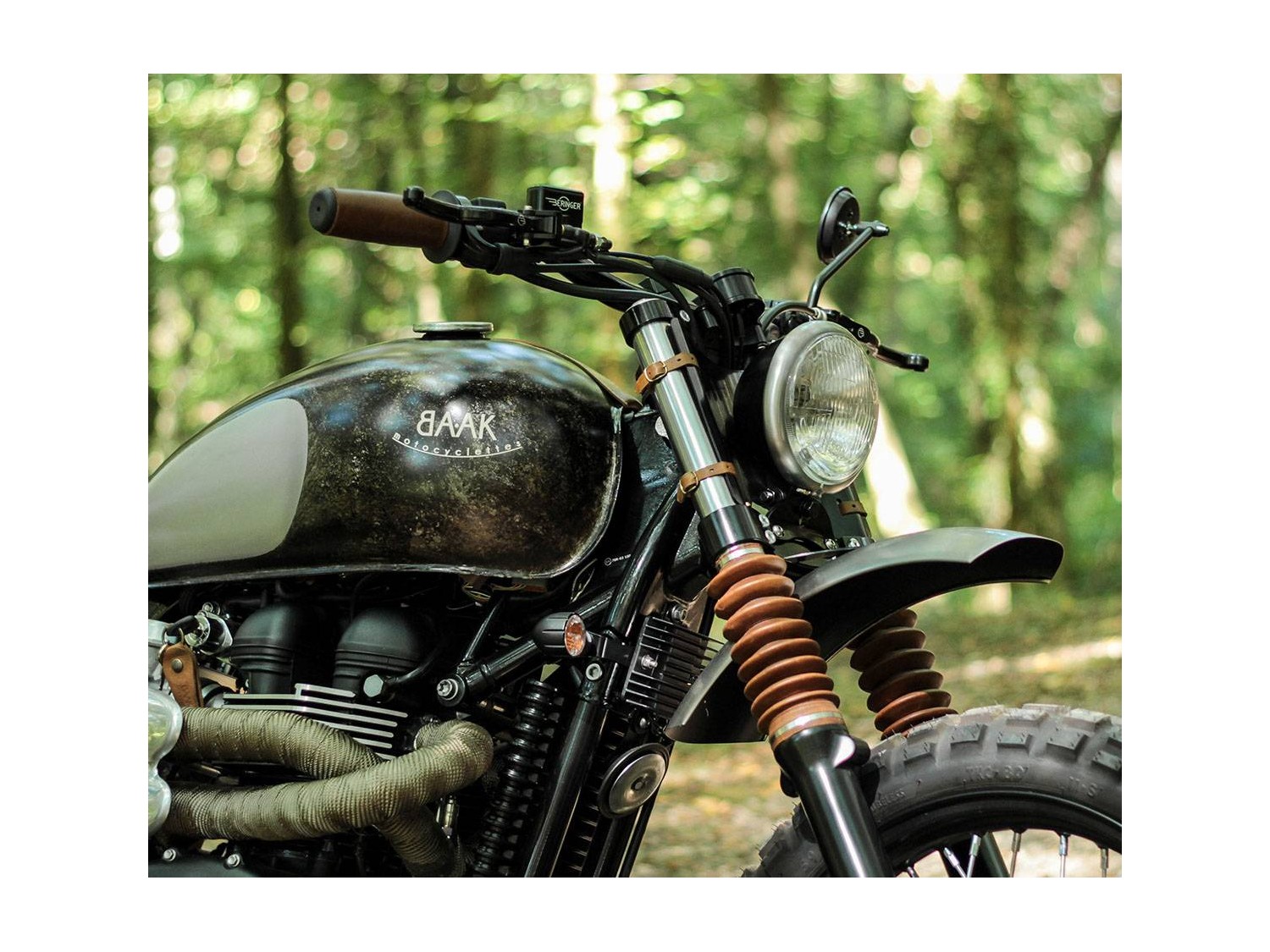

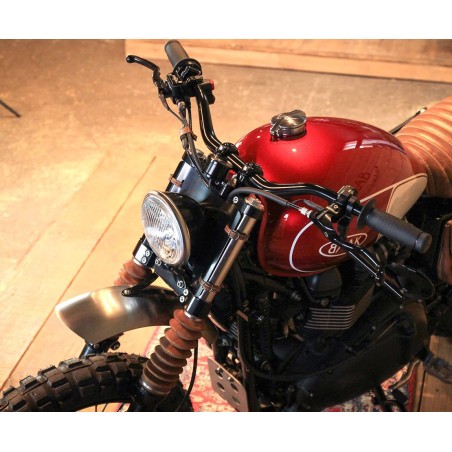

This speedometer equips in particular our Triumph 865 Scrambler model.
