Motogadget Tiny speedometer for Triumph (pre-2016)

Motogadget Tiny speedometer for Triumph (pre-2016) ^*Required step

Motogadget Tiny speedometer for Triumph Bonneville, Scrambler or Thruxton

(before 2016 – air-cooled)

This speedometer is a Plug & Play solution to streamline your cockpit while retaining the original speedometer functions.

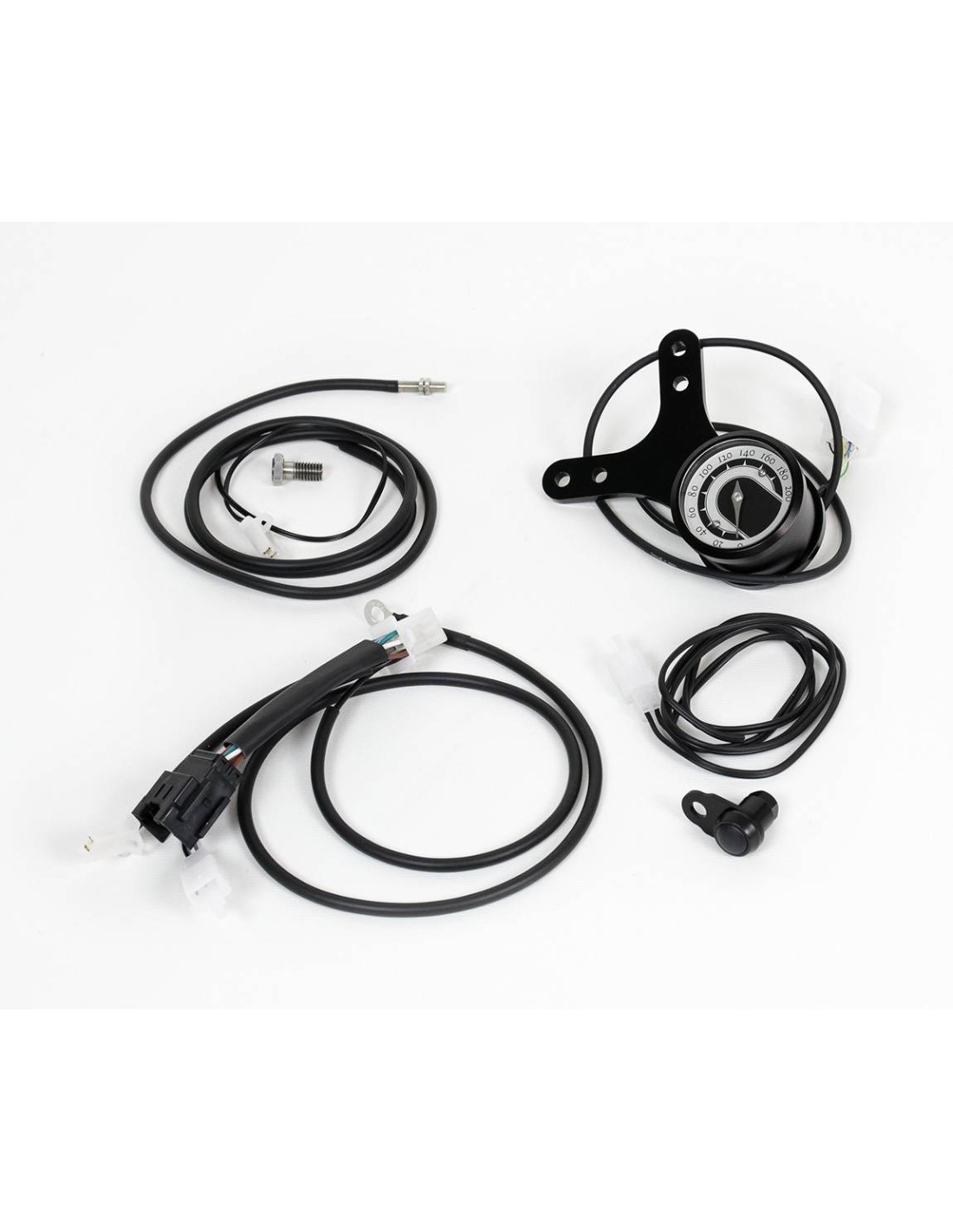

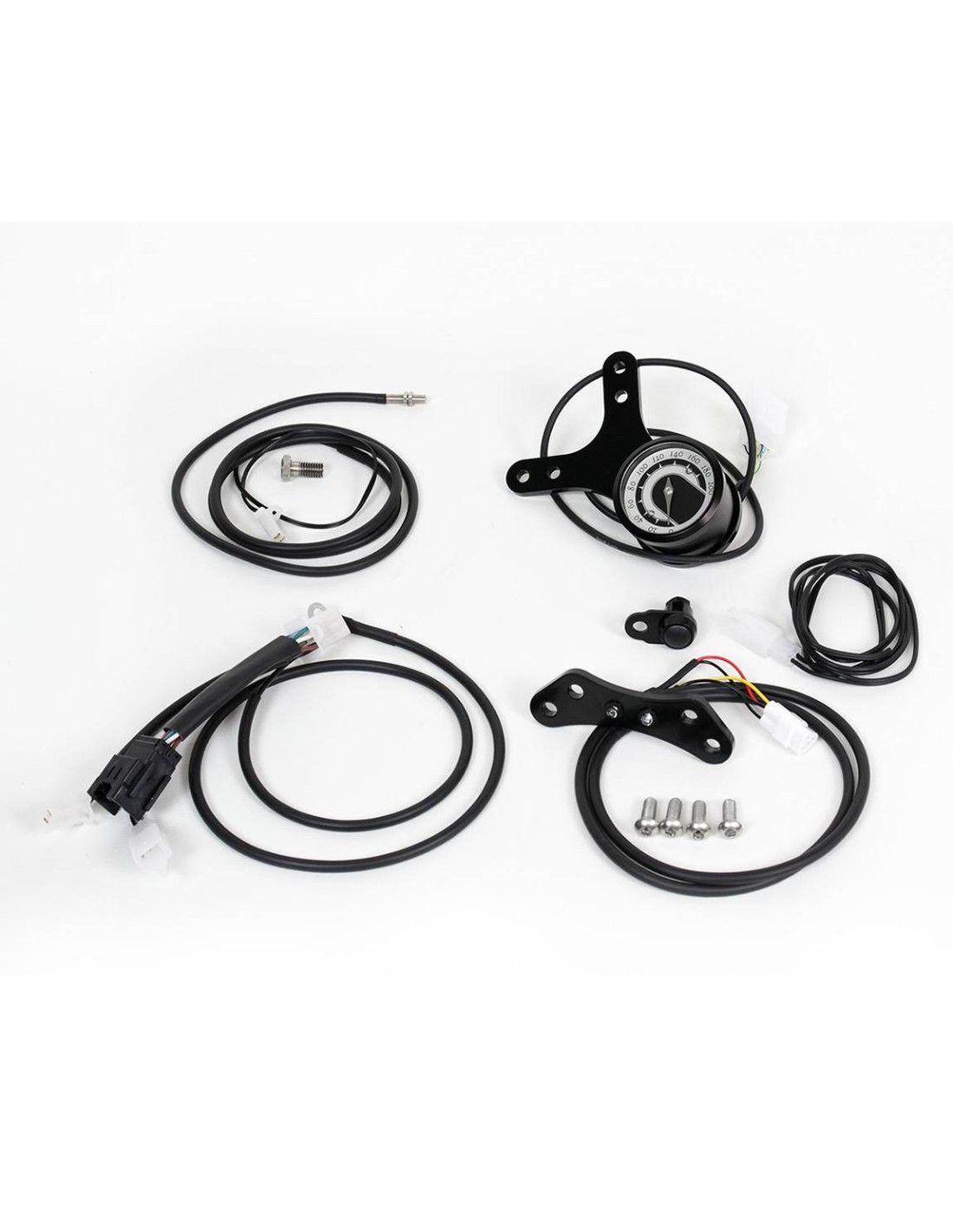

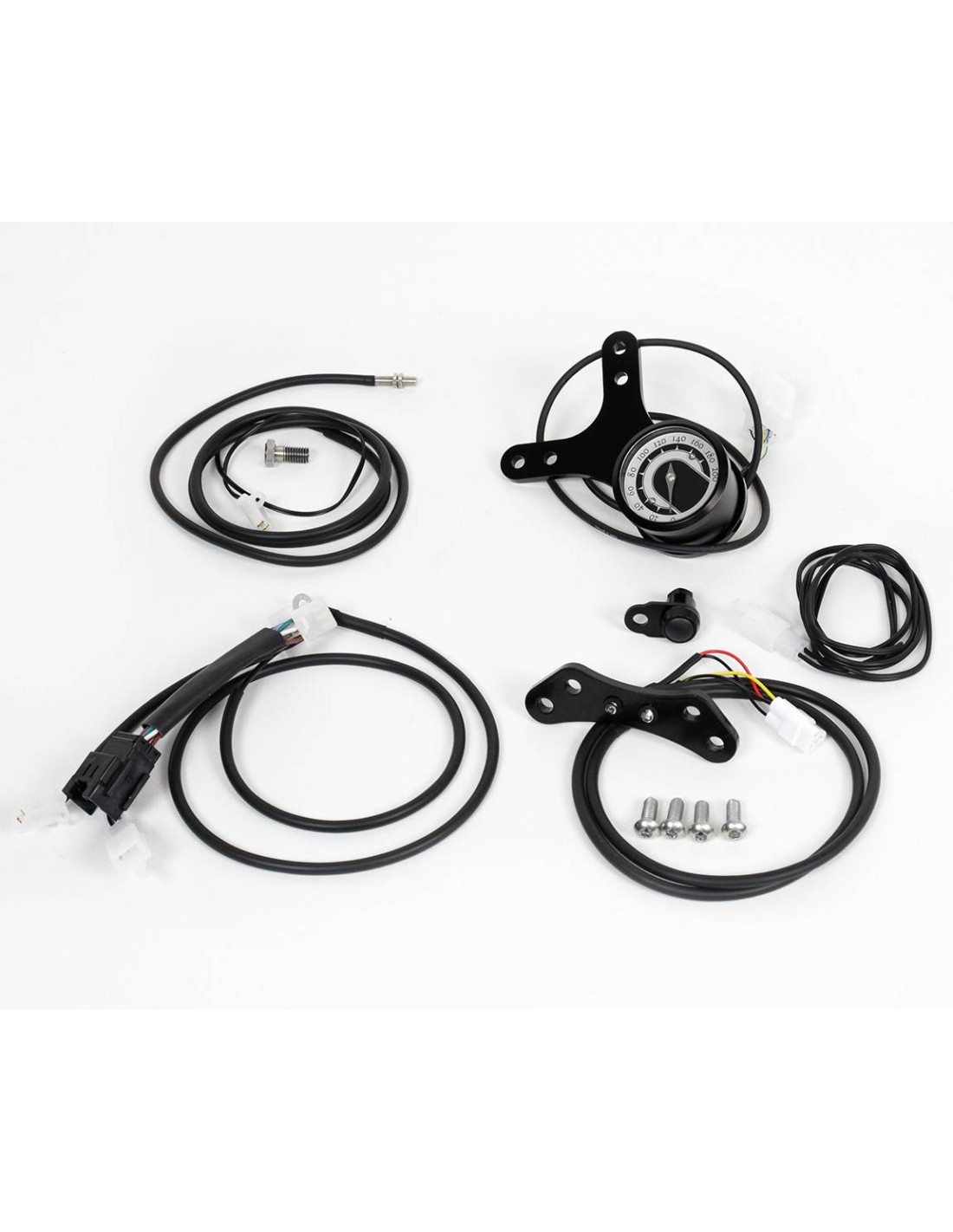

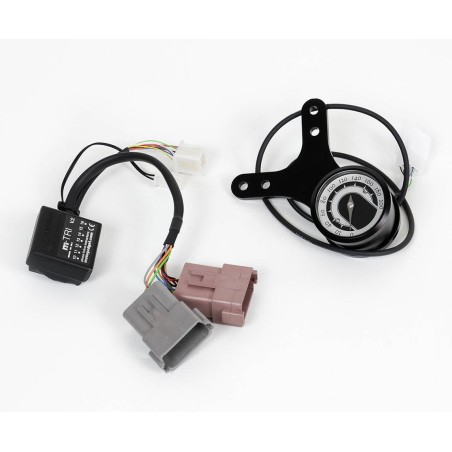

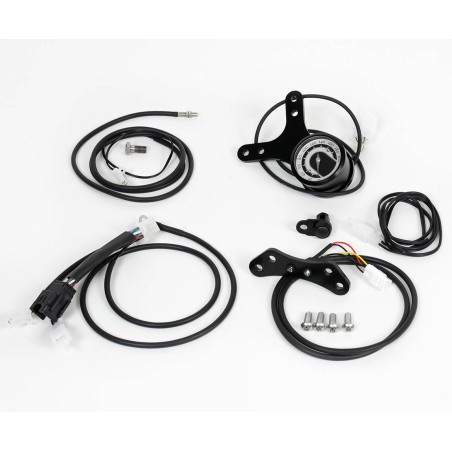

It is delivered with everything needed depending on the selected motorcycle model (Mounting bracket, M-Tri multiplexing unit, speed sensor, compatible wiring harness...).

Headlight with satin black housing and Chromed, Brushed, or Satin Black bezel. A fully Brushed or Chromed finish is also available.

The speedometer can display in KM/H or MPH.

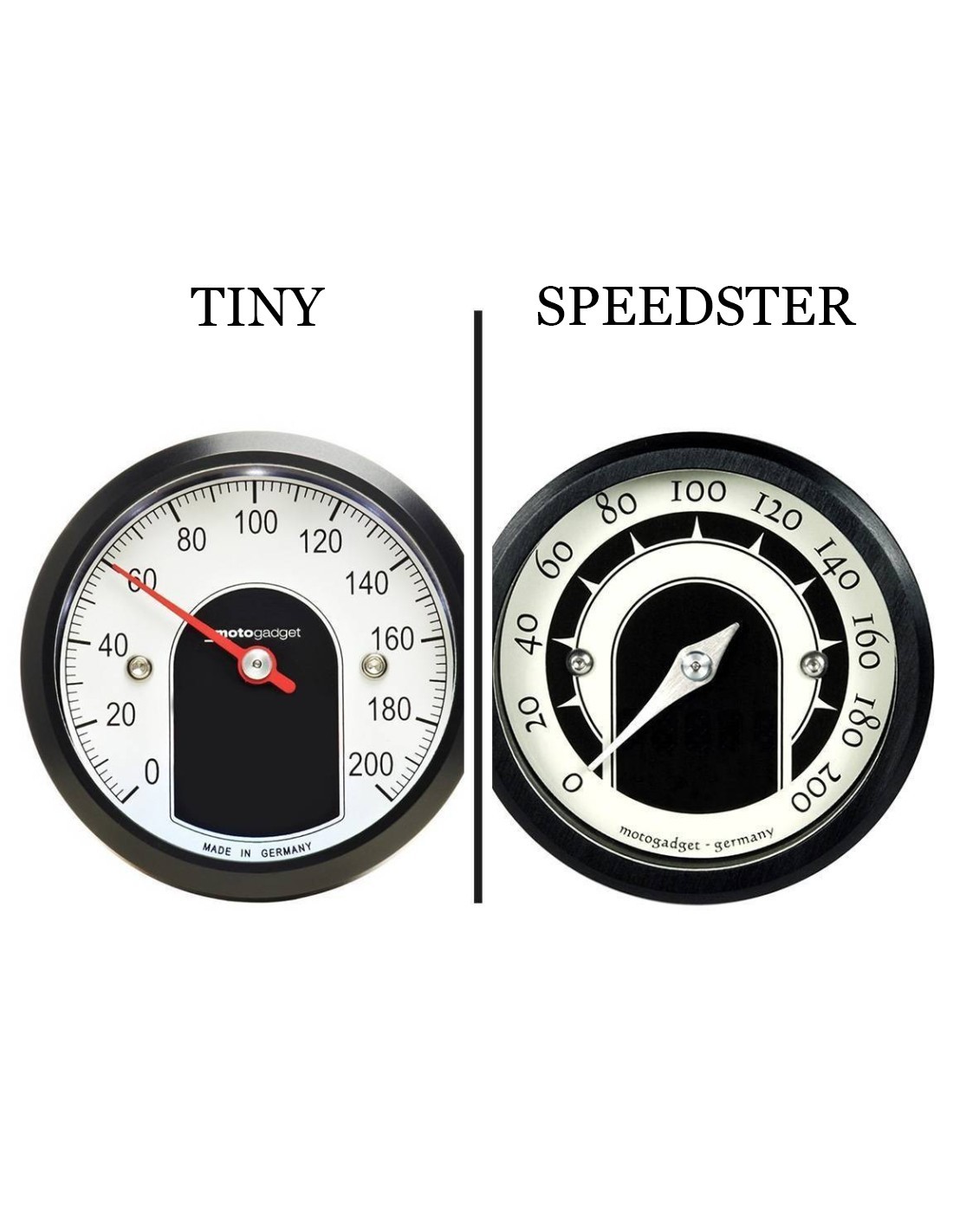

Speedometer dial available in Tiny or Speedster finish.

Two bracket options available:

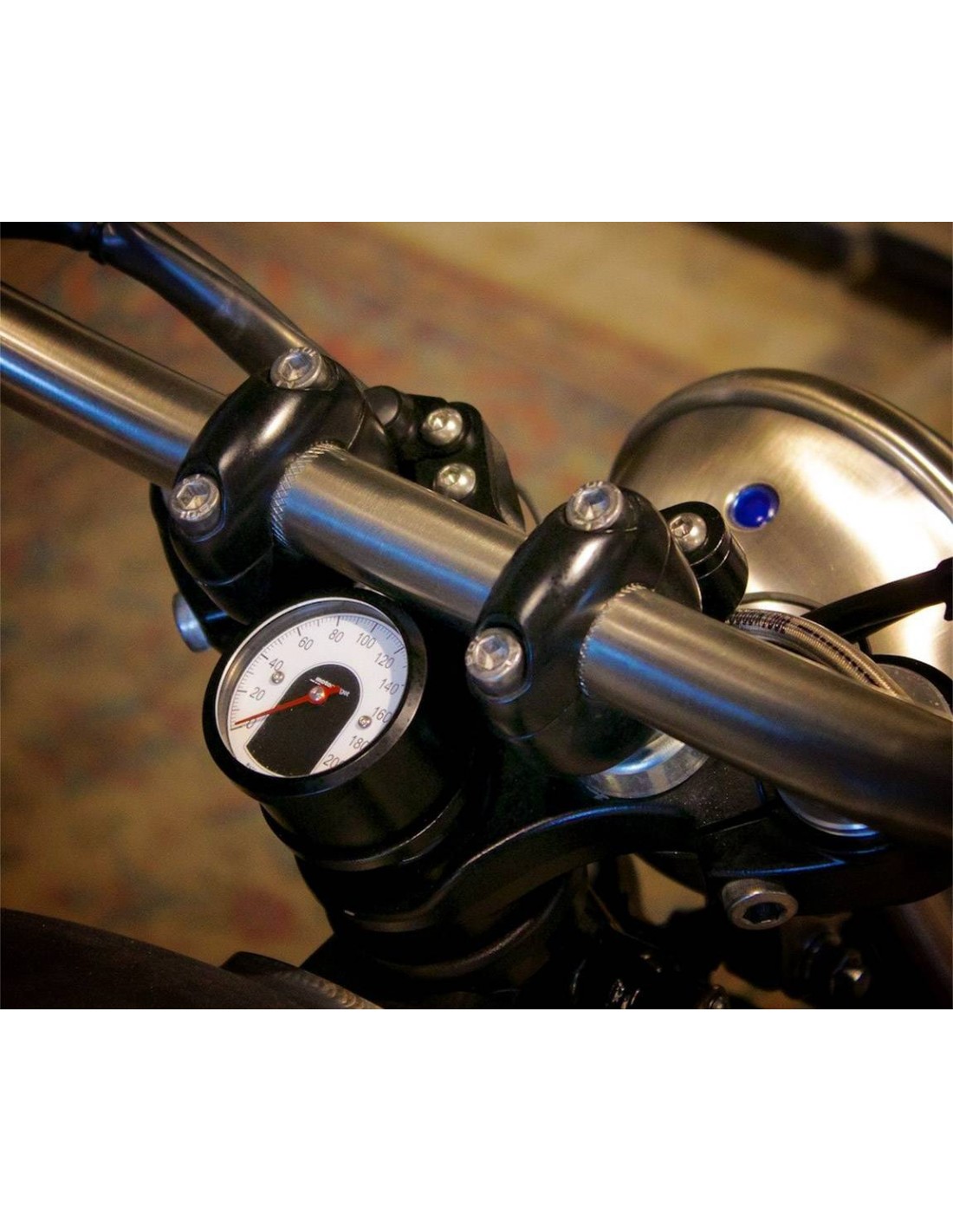

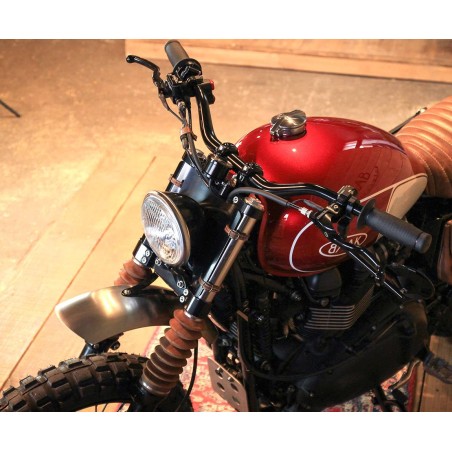

In the classic position in front of the handlebar

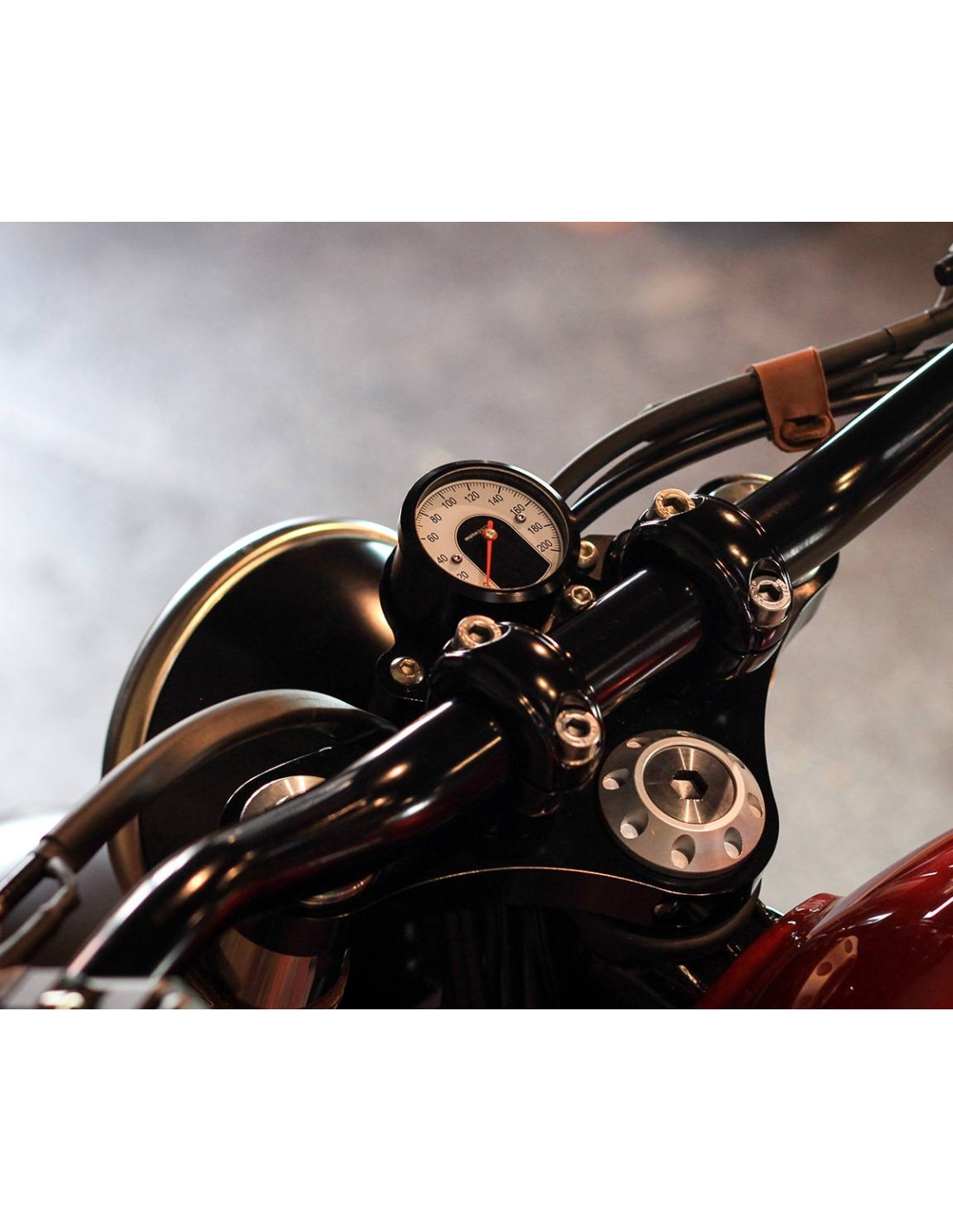

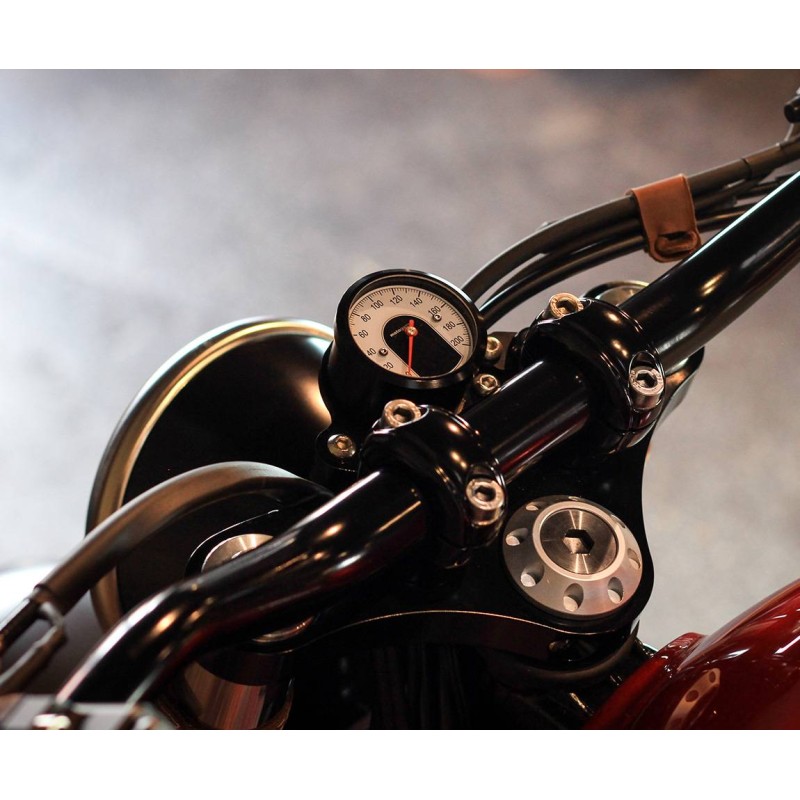

Above the steering column

The headlight is CE approved and the speedometer is CE and TÜV approved.

The user manual is available below.

Find our guide below to choose the right model for your motorcycle.

BAAK EXCLUSIVE

Availability : 10 to 15 days

Display Meter ^*

€0.00

Speedometer finish ^*

€0.00

Motorcycle model ^*

€0.00

Position ^*

€0.00

Your configuration:

Base price (tax incl.): €689.00
: -15%

Final price (tax incl.): €585.65

CE-approved headlight and motogadget Tiny speedometer approved CE and TÜV with ABE certificate.

This Mini speedometer is available for:

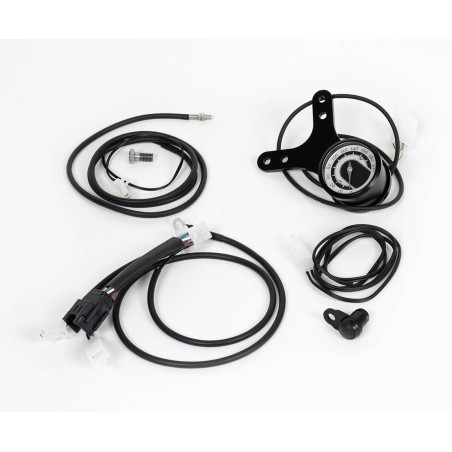

Carbureted models, delivered with wiring harness and speed sensor.

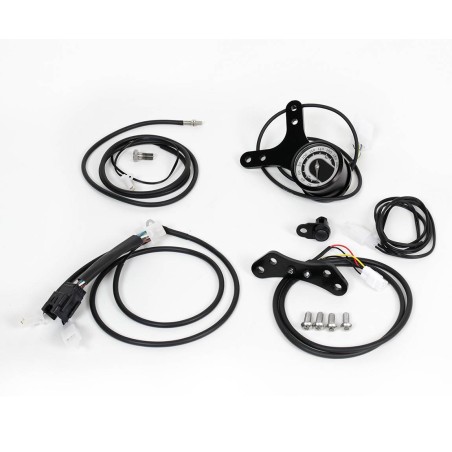

EFI model with mechanical speedometer and mounting plate for engine warning / fuel reserve indicators (Make sure not to choose the CLASSIC POSITION option for Triumph in order to install this plate in front of the handlebar)

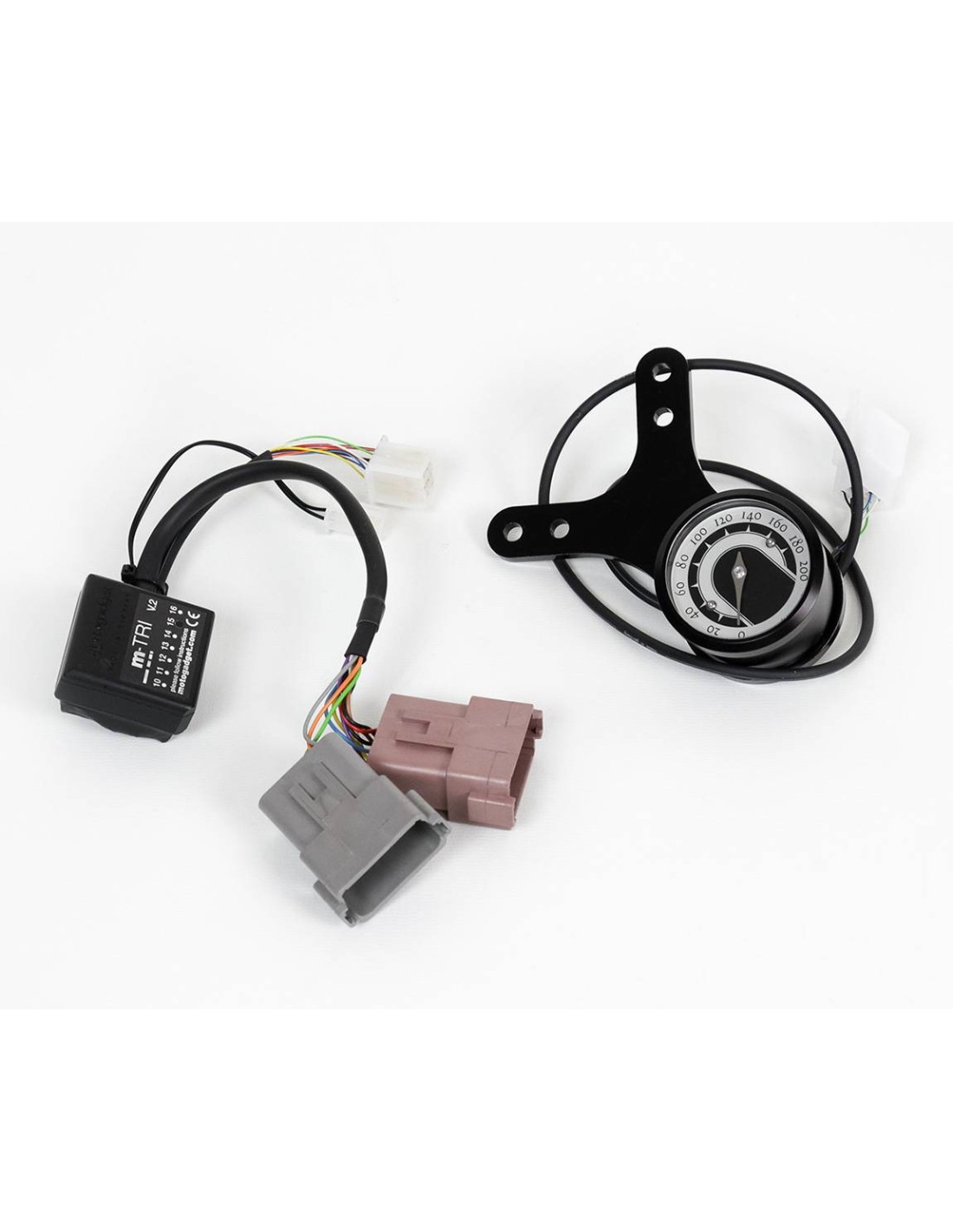

EFI models with electronic speedometer, delivered with pre-wired harness and M-Tri multiplex unit.

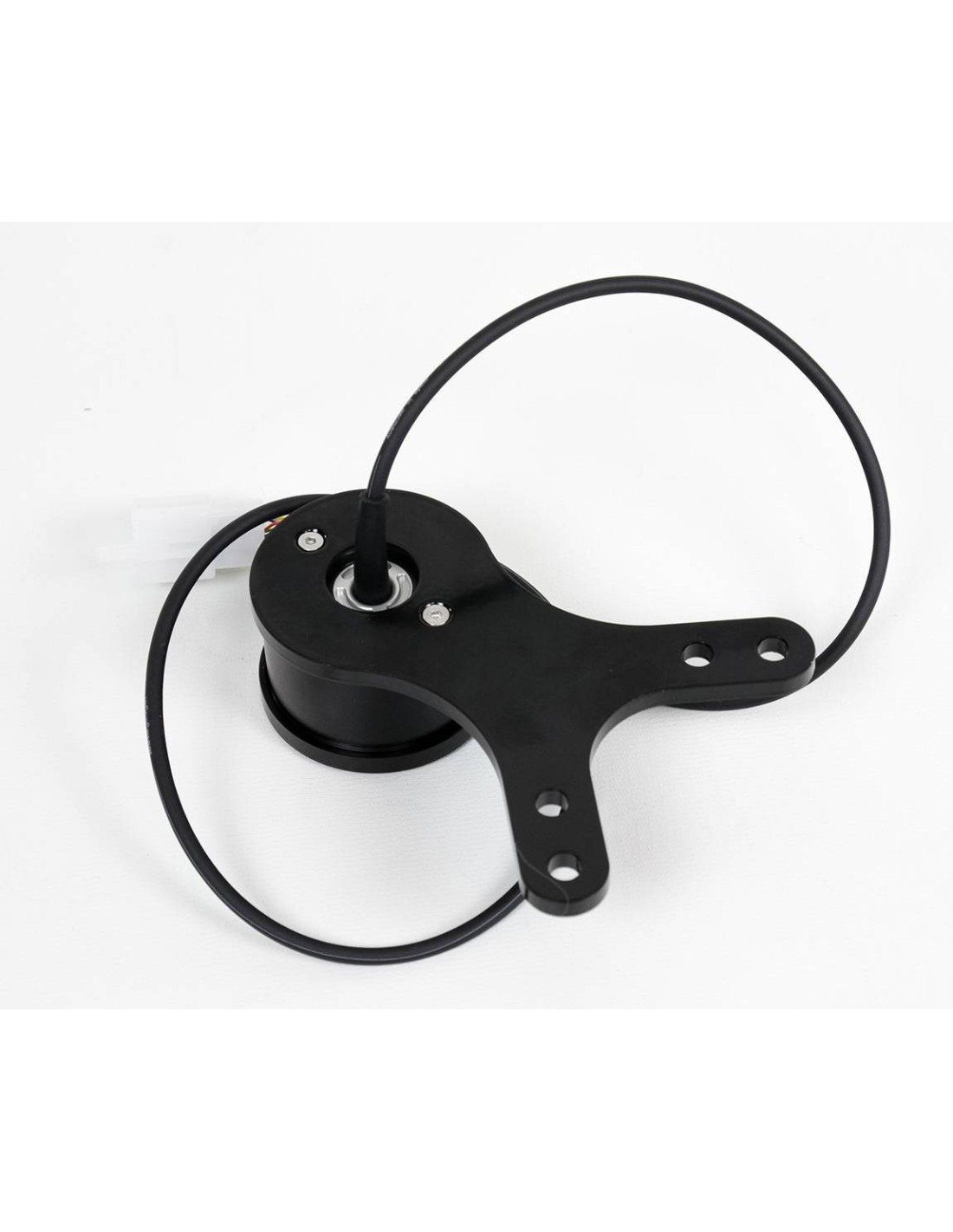

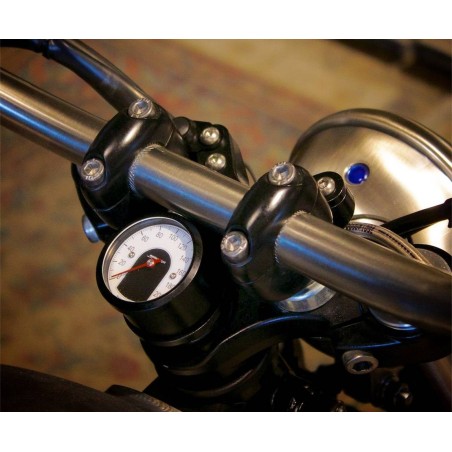

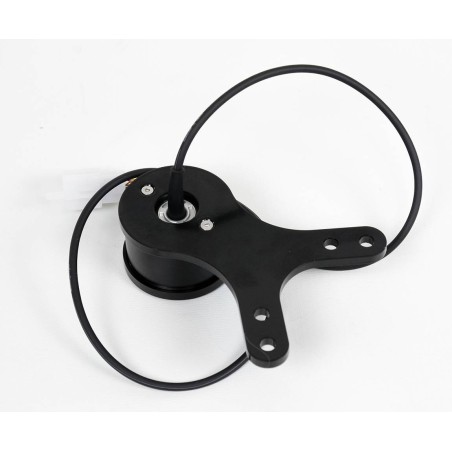

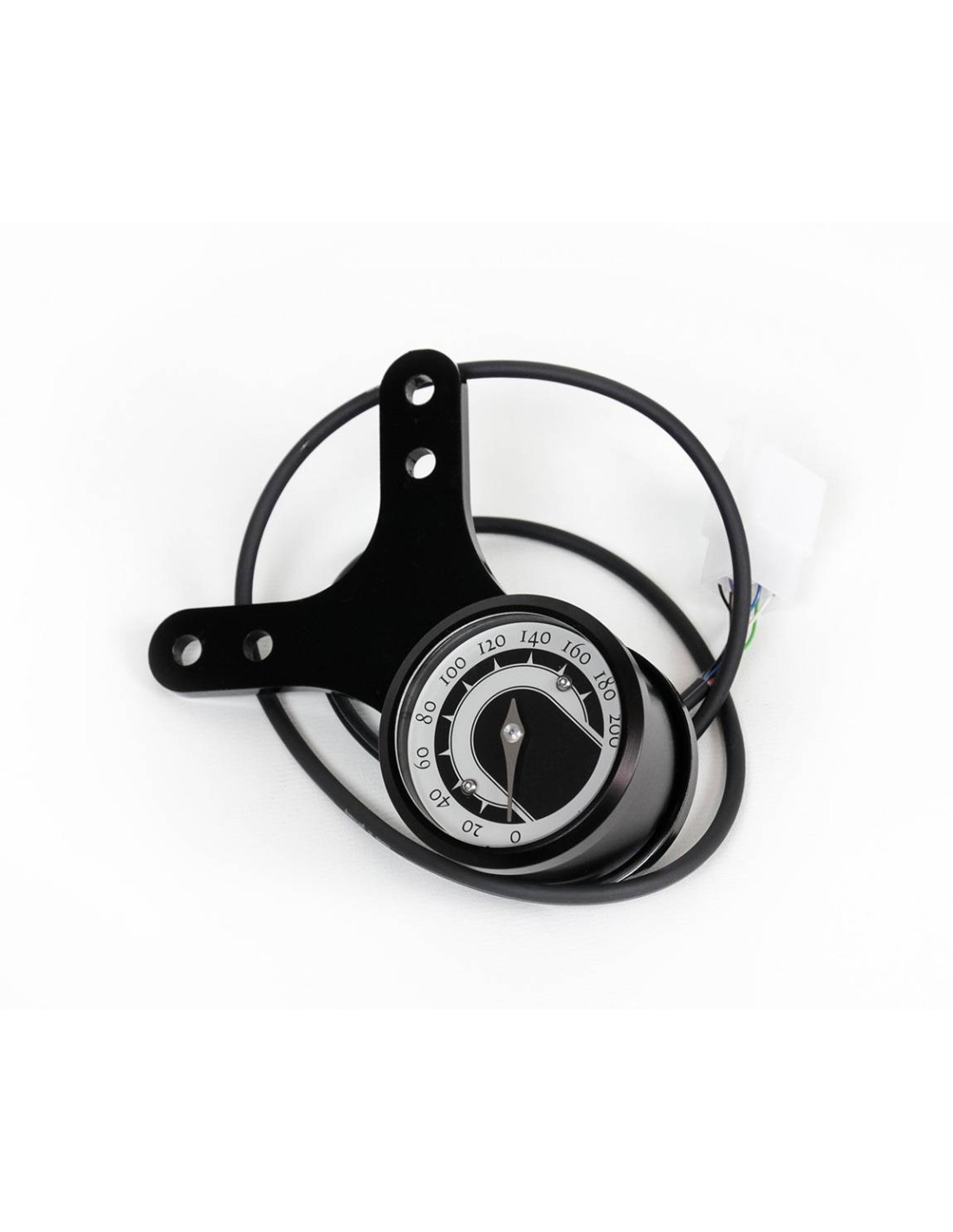

This speedometer mounts on the upper triple clamp in place of the original one using a satin black epoxy-painted aluminum bracket.

WARNING, this speedometer is not compatible with Triumph Scrambler EFI models with mechanical speedometer. For Triumph Scrambler Carburetor models, it can only be mounted in the CLASSIC POSITION IN FRONT OF THE HANDLEBAR.

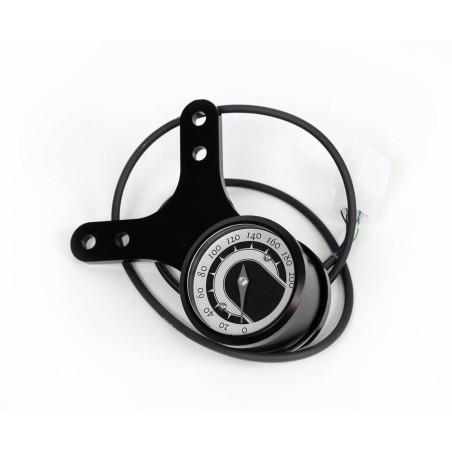

The ø49mm, 24mm high speedometer is made in Germany by Motogadget. It comes with a button to navigate through the menus via the central LCD display, set your actual mileage, view your top speed, etc.

Information displayed includes:

Turn signals
Neutral
Oil pressure
High beam
Total mileage
Trip meter
Clock
Top speed

Fuel reserve

We configure the speedometer to add the “fuel reserve” feature. The speedometer has no dedicated indicator, but we transfer the signal to the turn signal light. When you reach the fuel reserve, both turn signal lights (left and right) stay constantly lit, increasing in intensity as the tank empties.

Delivered with its pre-wired M-TRI multiplex unit for EFI models. This headlight mounts where your Triumph’s voltage regulator is located. You will need to relocate the regulator using our Regulator support for Triumph (pre-2016).

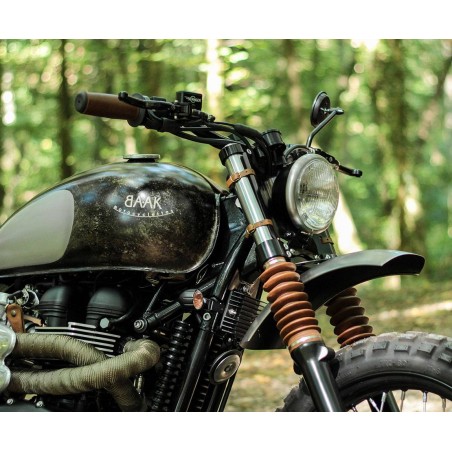

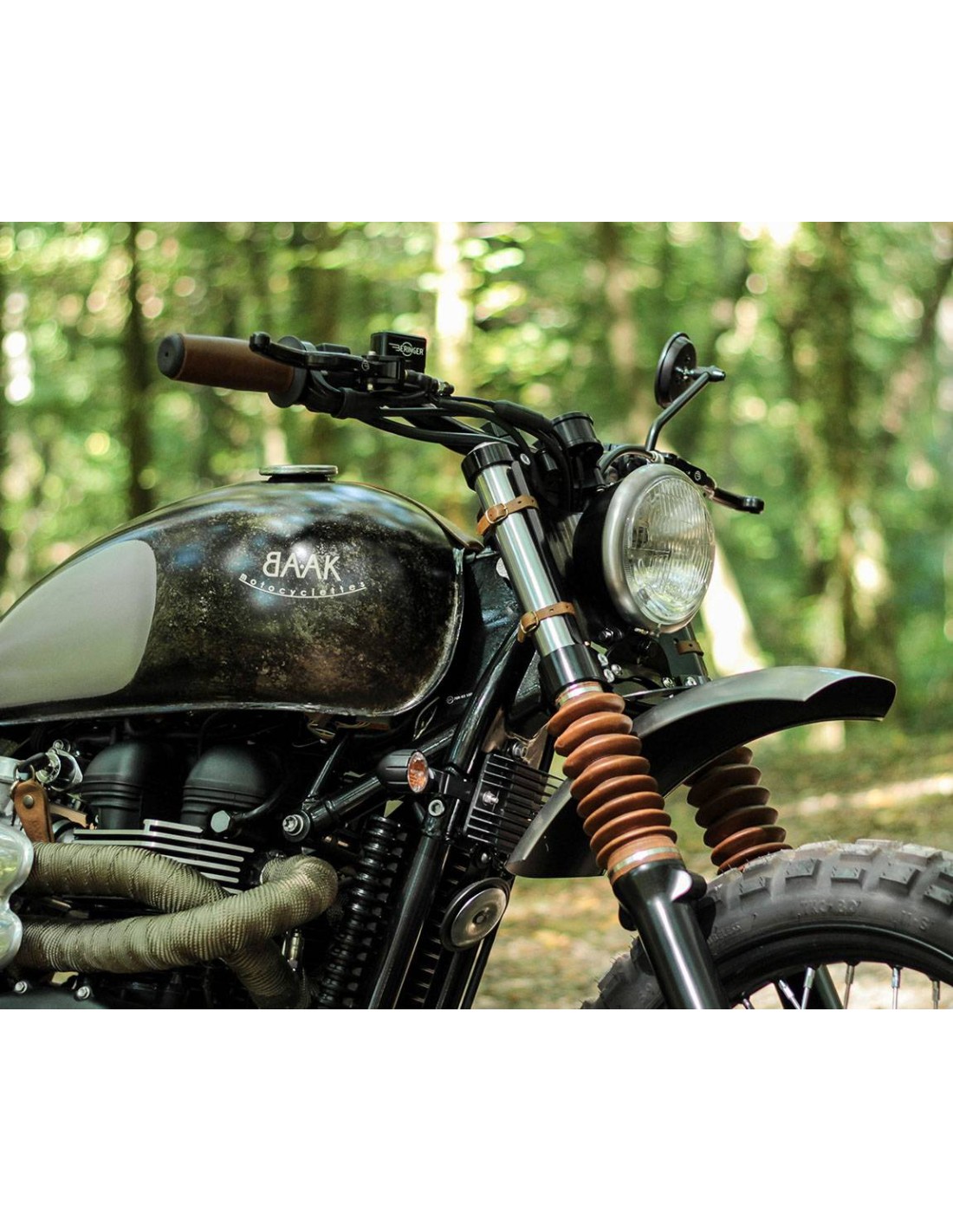

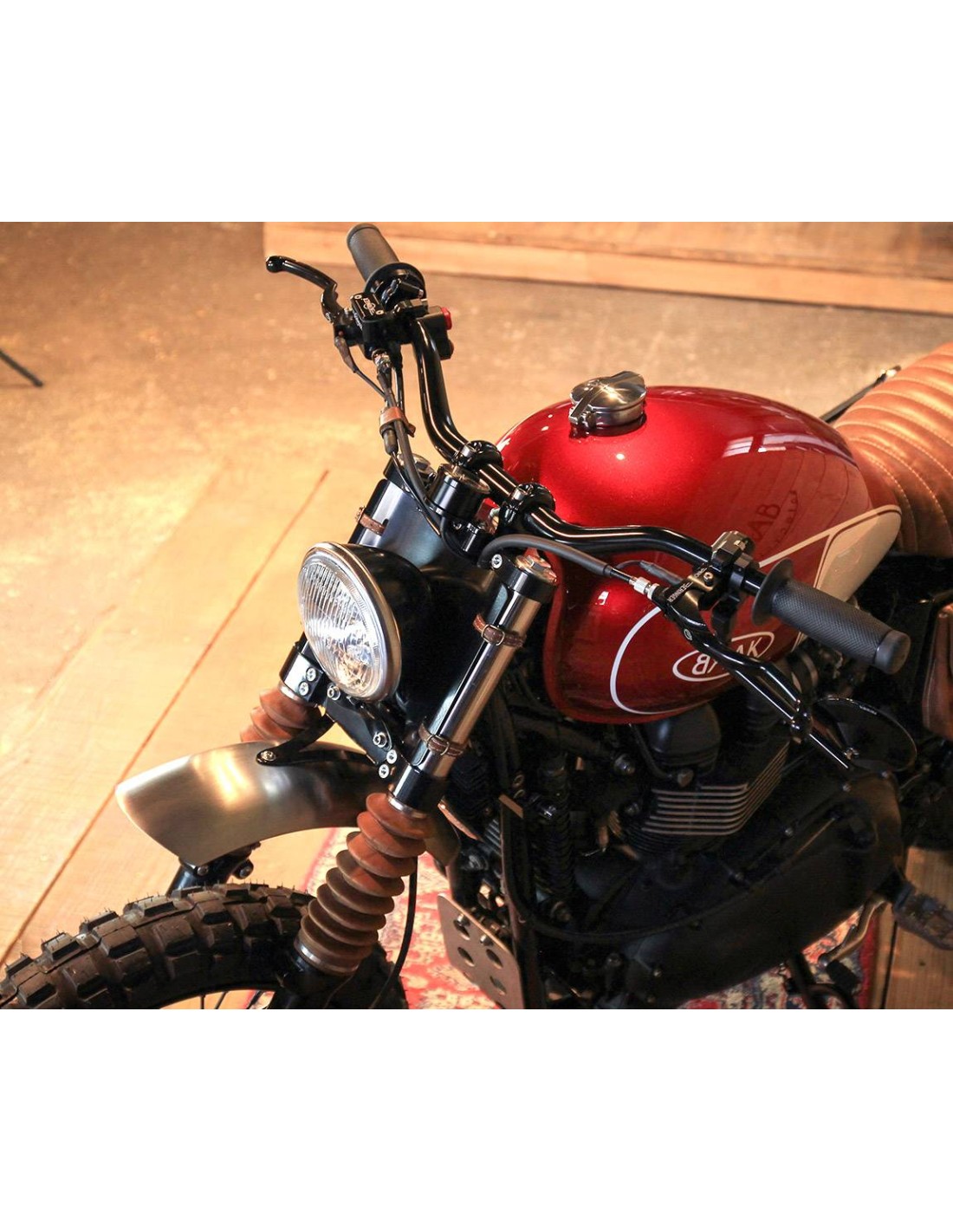

This speedometer is featured on our Triumph 865 Scrambler model.
