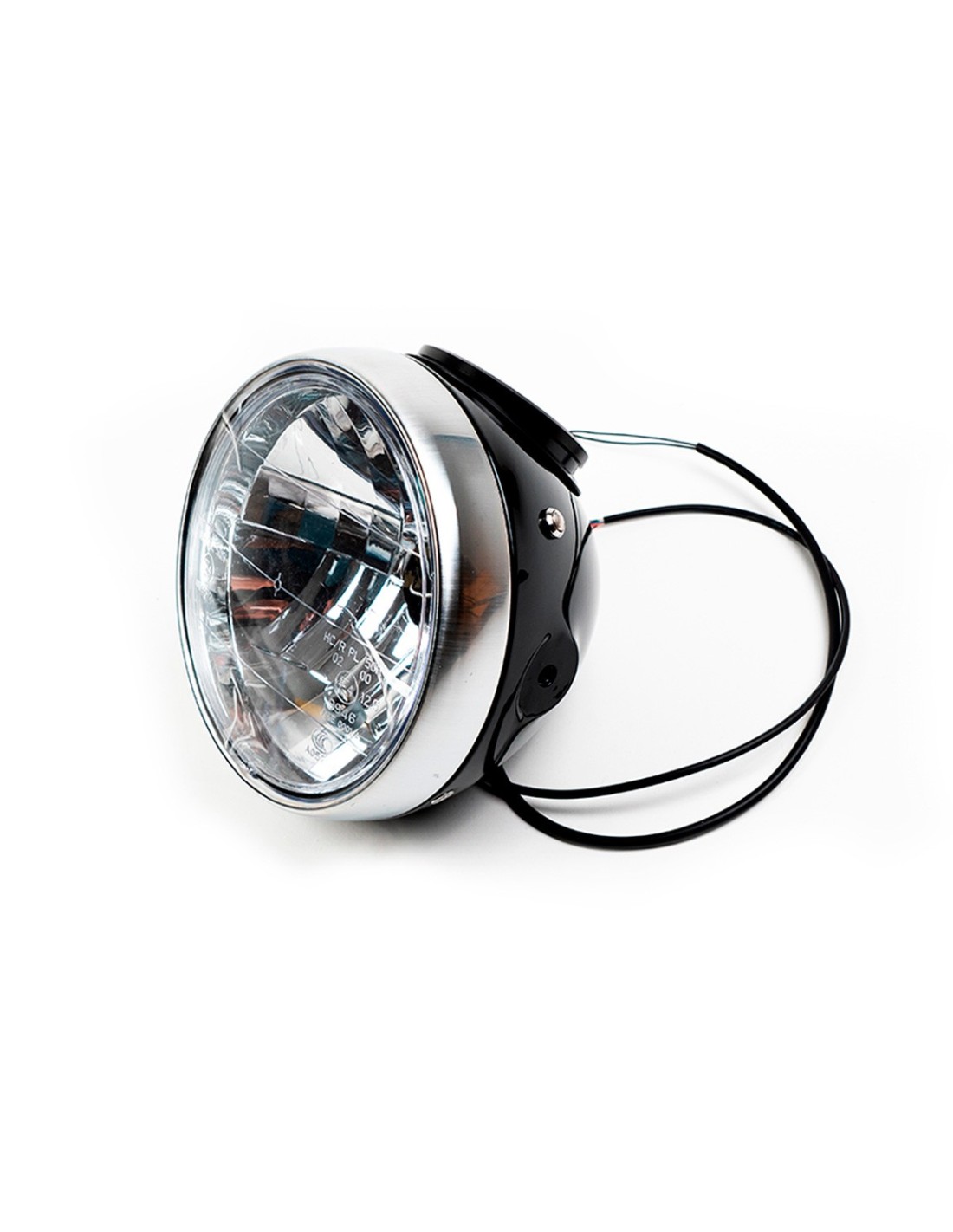

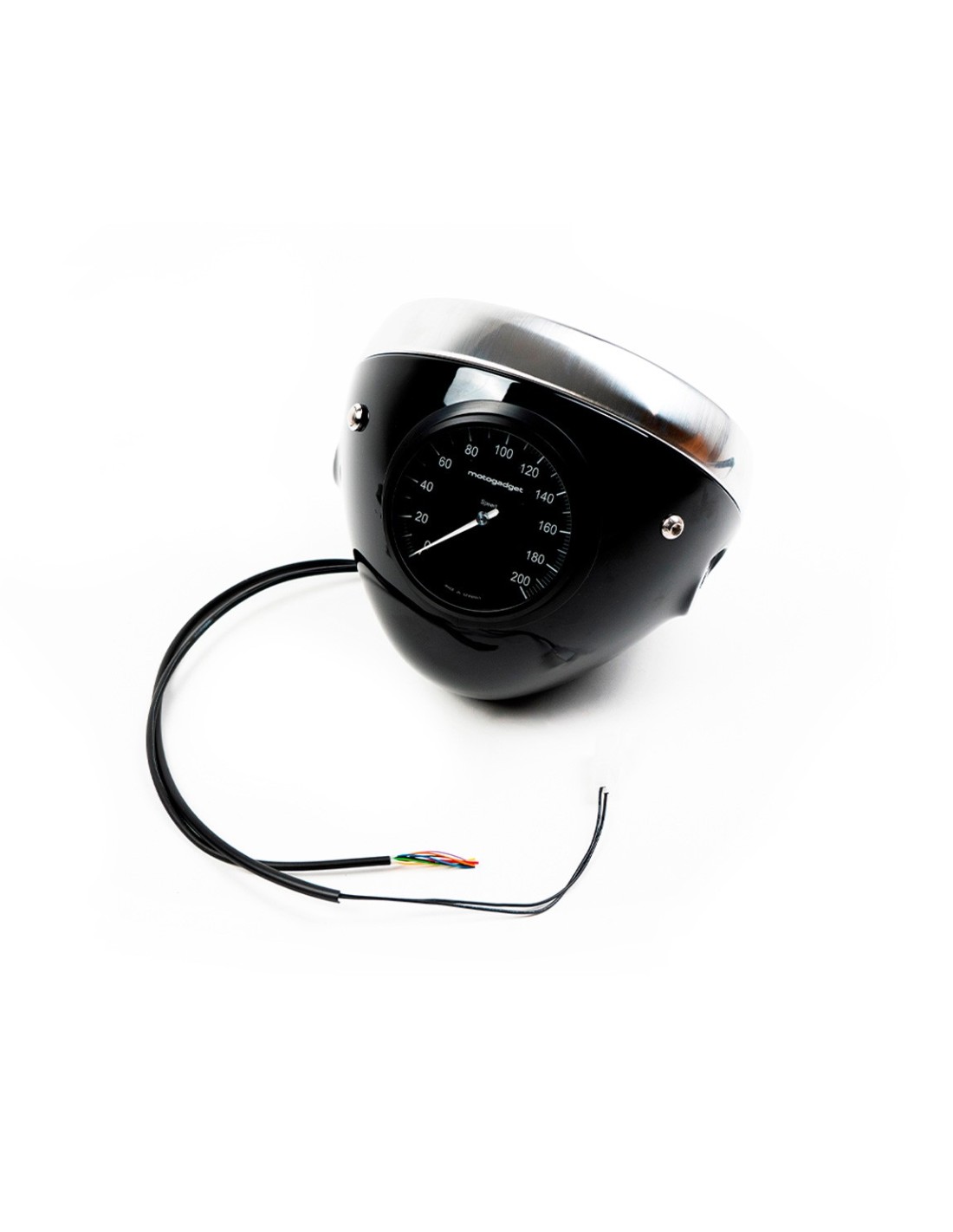

Classic Headlight with Chronoclassic 2 Speedometer – Universal
Headlight with Integrated Chronoclassic 2 Speedometer – Universal.
The satin black metal headlight shell Ø180 mm features M8 side mounts.
The speedometer is manufactured in Germany by Motogadget.
It can be easily programmed according to your wheel diameter.
The headlight is CE approved and the speedometer is CE and TÜV approved.
Installing the speedometer requires knowledge of motorcycle electronics. The user manual is available below.
BAAK EXCLUSIVE
CE-approved headlight, Motogadget Chronoclassic 2 speedometer CE and TÜV approved with KBA certificate.
Headlight dimensions:
Width between mounts: 180 mm
Depth (approx.): 155 mm
Universal use on all motorcycle models using one of the Motogadget Breakout-Boxes (sold separately).
Speedometer features
Indicator lights:
Immobilizer / alarm (Plug & Ride only)
Fuel reserve
Oil / water temperature
Engine control / MIL
ABS / ASR (Plug & Ride only)
Oil pressure
Left turn signal
Right turn signal
High beam
Neutral
Universal warning light
Needles:
Backlit white
Scale variants: 8 / 10 / 14 kRPM, and 0–200 kmh/mph
Shift light:
Adjustable 0–20000 RPM
Display:
Speed indicator
Speed 999 [km/h / mph]
Trip A 999.9 [km / mi]
Trip B 999.9 [km / mi]
Odometer 999999 [km / mi]
RPM 0–14,000 [rpm]
Oil temperature 0–200 [°C / °F]
Water temperature 0–200 [°C / °F]
Air temperature -20 to 100 [°C / °F]
Oil pressure 0–10.0 [bar / psi]
Operating hours counter 9999 [h]
Trip time [h:mm:ss]
Clock
0–100 km/h time – 99.99 s
Acceleration 0–2.00 [G]
Average speed 999 [km/h / mph]
Top speed 999 [km/h / mph]
Max positive acceleration 0–2.00 [G]
Max negative acceleration 0 – -2.00 [G]
Max RPM 20000 [rpm]
System voltage 9–18 [V]
Fuel gauge 0–100 [%]
Adjustable alerts:
Oil temperature
Water temperature
System voltage
Air temperature
Oil pressure
Fuel tank level
Service interval
Speed warning (shift flash)
